Главная Каталог продукции Toolunited 10 201-01 - Triangle insert TCGT16T302-PF2 WK1

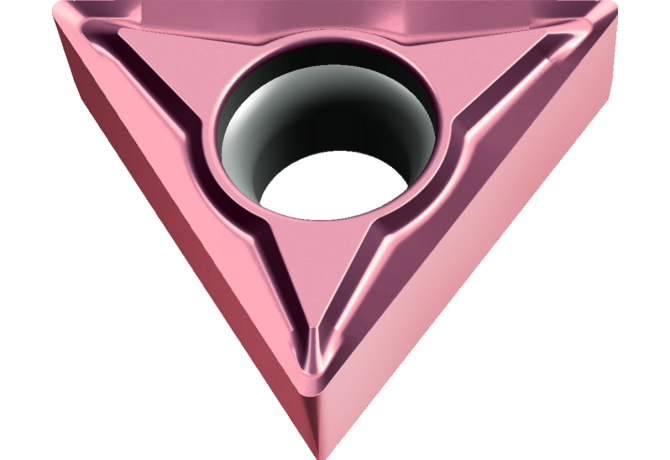

TCGT16T302-PF2 WK1

Артикул: 5337508

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

PF2

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

12/1/2023

DIN

TC16T3023N

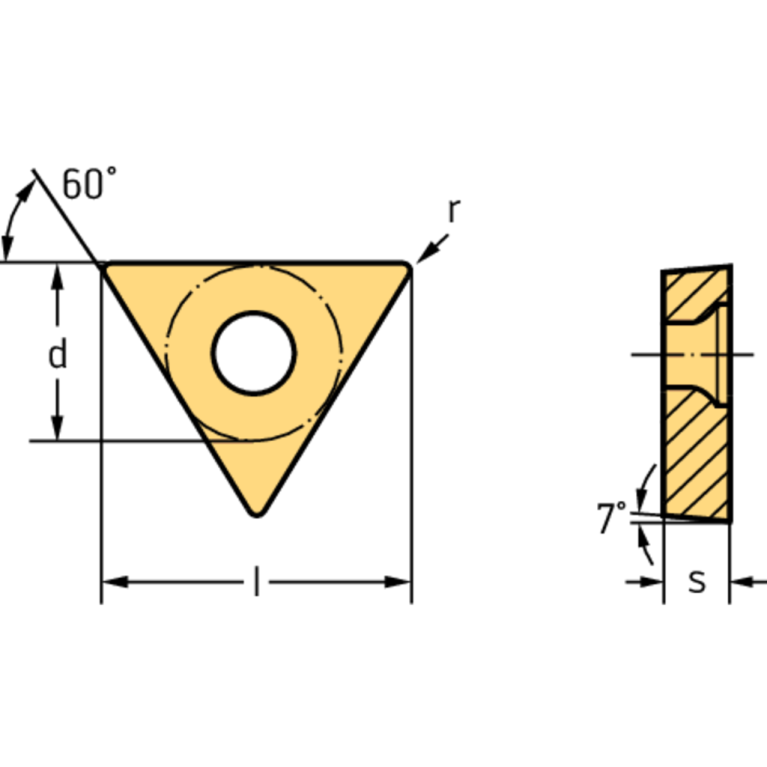

EPSR Insert included angle

60 Degree

FamilyProducts

Positive triangular 60° TCGT

GRDMFG Grade manufacturers designation

WK1

IC Inscribed circle diameter

9.525 mm

ID Technical product number

5337508

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

ISO$TC16T3023NB$$02

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.4978 mm

LOC-03 ISO

ISO$TC16T3023NB$$02

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3023N

MIID Master insert identification

TCGT16T302 WK1

Name Identifying order number

TCGT16T302-PF2 WK1

NameAnsi Identifying order number inch alternative

TCGT3(2.5)0.5-PF2 WK1

NOI Insert index count

RE Corner radius

0.2 mm

S Insert thickness

3.96875 mm

S1 Insert thickness total

3.96875 mm

STDDES Standard designation

TCGT16T302

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.005 kg
