P23696-2.0 WSP45
P23696-2.0 WSP45
Артикул:
5882887
В наличии
Характеристики
CBMD Chip breaker manufacturers designation
F55
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
TiAlN+Al2O3+(ZrN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
5.5 mm
Delivery state valid from
12/1/2023
DIN
W-P236X2$$3RB$$$$
FamilyProducts

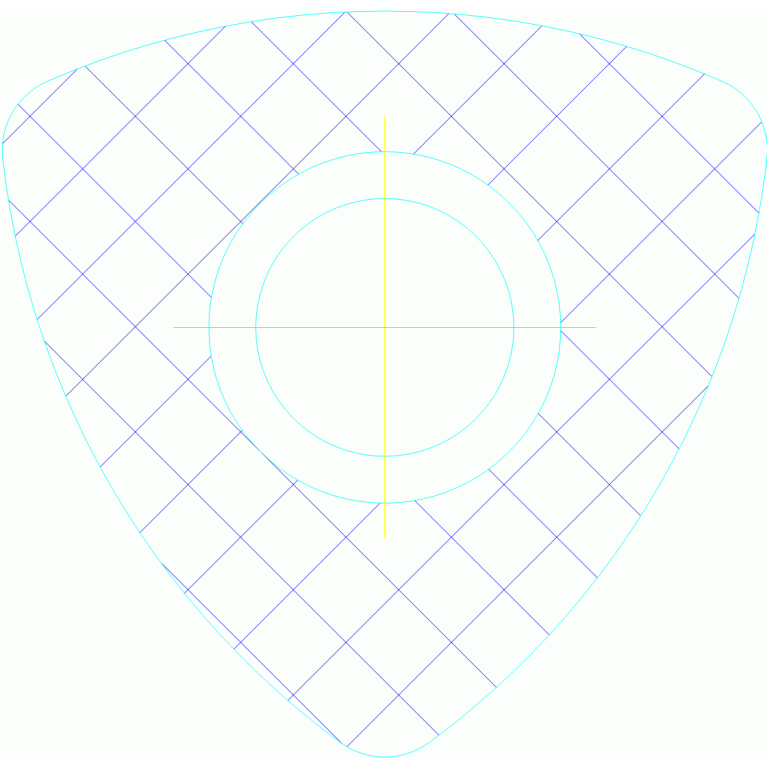

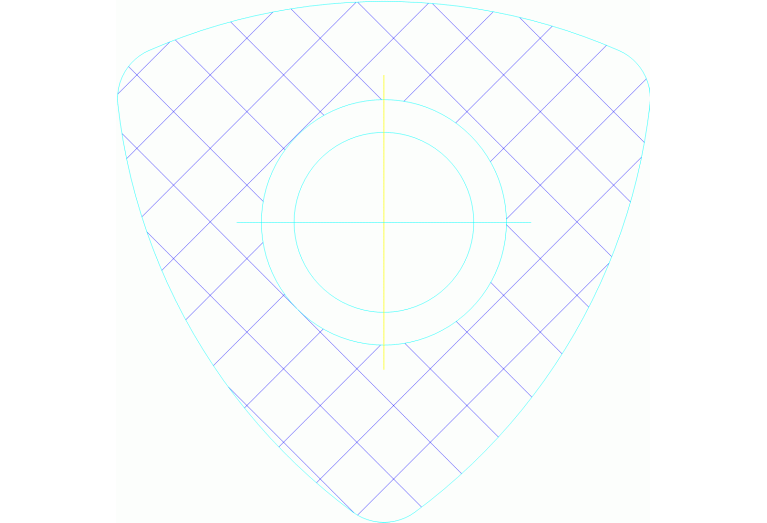

Negative triangular P23696
GRDMFG Grade manufacturers designation
WSP45
IC Inscribed circle diameter
13.5 mm
ID Technical product number
5882887
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 / J441
ISISO ISO property
0
ISO
WR$$P236X2$$3RB$$$$
ISYC Subclass
201-01 - Triangle insert
LOC-03 ISO
WR$$P236X2$$3RB$$$$
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
W-P236X2$$3RB$$$$
Name Identifying order number
P23696-2.0 WSP45
NOI Insert index count
6
RE Corner radius
1.6 mm
S Insert thickness
7.41 mm
S1 Insert thickness total
7 mm
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
FPL - Face milling
WT Weight of item
0.016 kg
