NP-TPGB160308TA3 MB8130
NP-TPGB160308TA3 MB8130
Артикул:
10600528
В наличии

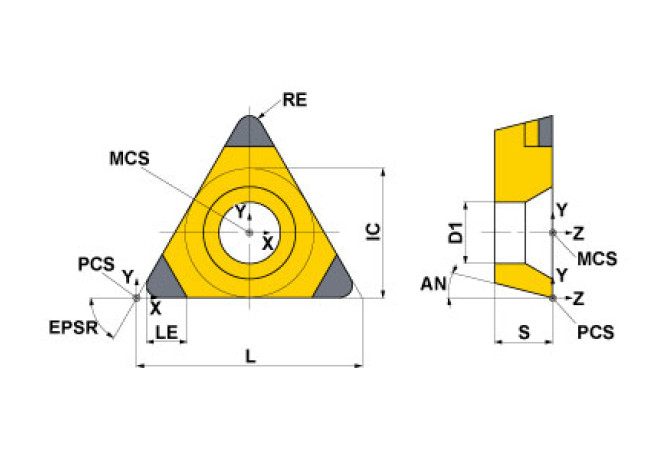

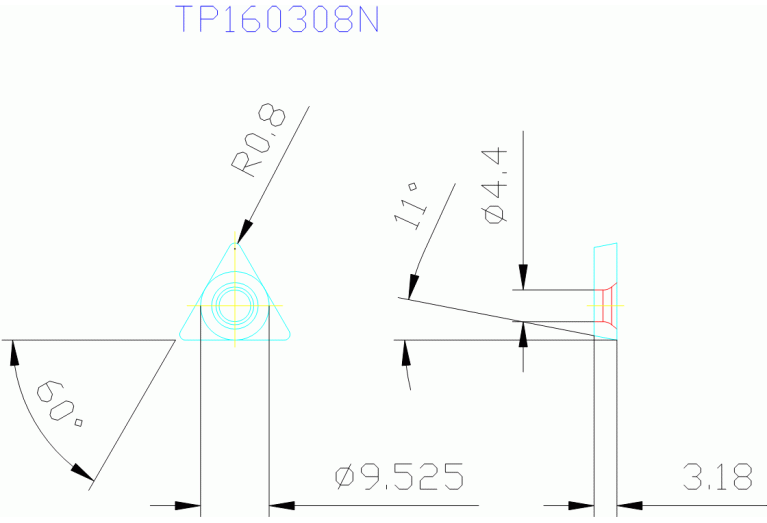

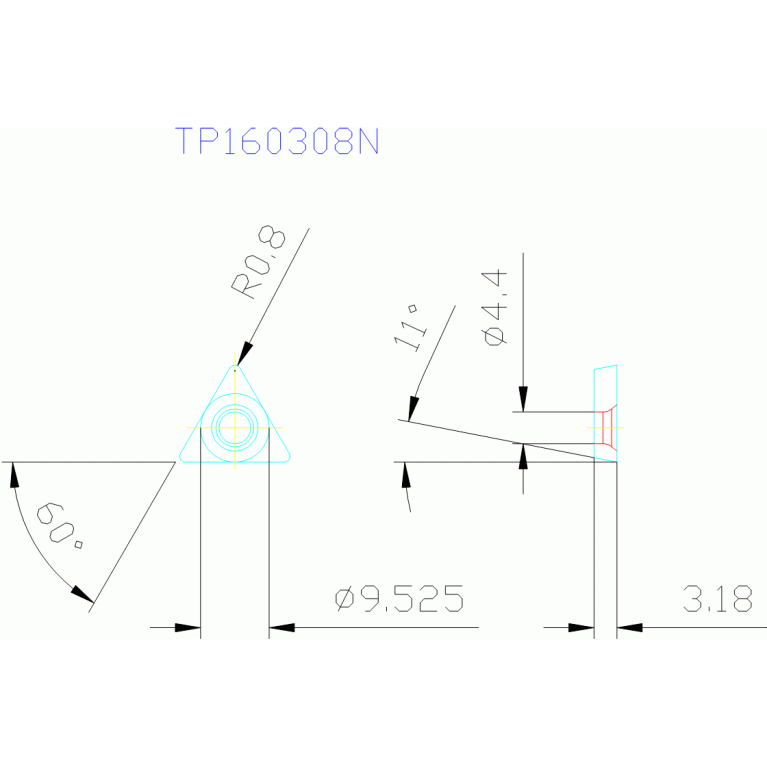

Характеристики
AN Clearance angle major
11 Degree
CB Chip breaker face count
0 - Without chip breaker
CECC Cutting edge condition code
S - Chamfered and rounded
COMPC Company code
MI - Mitsubishi Materials
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/3/2018
EPSR Insert included angle
60 Degree
FamilyProducts
CBN Turning insert (Positive)
GRDMFG Grade manufacturers designation
MB8130
IC Inscribed circle diameter
9.525 mm
ID Technical product number
10600528
IFS Insert mounting style code
4 - Counter bore for screws with taper angle from 70° to 90°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$TP1603084NA$$08
ISYC Subclass
201-01 - Triangle insert
L Cutting edge length
16.5 mm
LE Cutting edge effective length
1.7 mm
LOC-03 ISO
ISO$TP1603084NA$$08
LOC-03-Connection-codes
J6 / J441 - connection code machine end
Name Identifying order number
NP-TPGB160308TA3 MB8130
NOI Insert index count
3
RE Corner radius
0.8 mm
S Insert thickness
3.18 mm
TCE Tipped cutting edge code
C
TCINS Tolerance class insert
G
Working process
No working processes available
