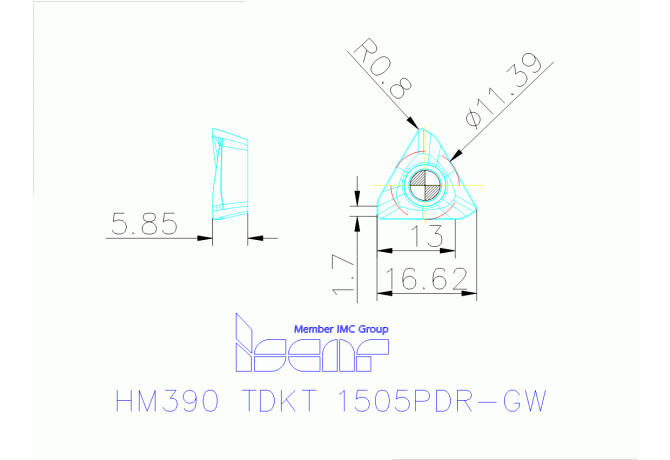

HM390 TDKT 1505PDR-GW IC30N

Артикул: 5668461

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

1.7 mm

CBMD Chip breaker manufacturers designation

PDR-G

CECC Cutting edge condition code

T - Chamfered

COATN Coating

ohne

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.4 mm

DIN

IS-541263910502334

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular Inserts with 3 Helical Cutting Edges for 90° Shoulder Accuracy

GRDMFG Grade manufacturers designation

IC30N

IC Inscribed circle diameter

11.4 mm

ID Technical product number

5668461

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$541263910502334

ISYC Subclass

201-01 - Triangle insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

16.5 mm

LE Cutting edge effective length

13 mm

LOC-03 ISO

IS$$541263910502334

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-541263910502334

Name Identifying order number

HM390 TDKT 1505PDR-GW IC30N

RE Corner radius

0.8 mm

S Insert thickness

5.8 mm

Working process

No working processes available
