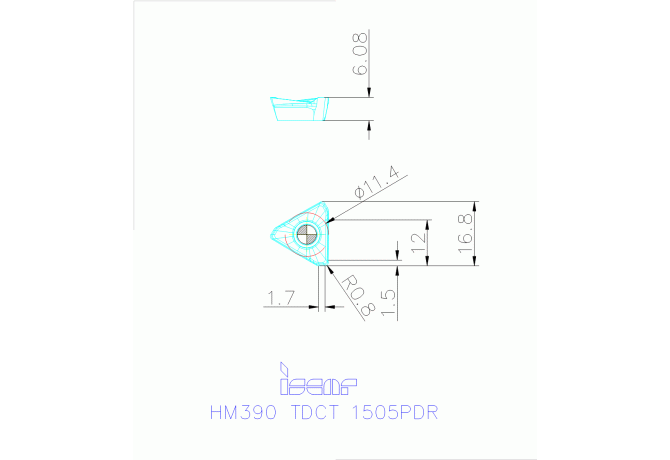

HM390 TDCT 1505PDR IC810

Артикул: 5607510

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

1.7 mm

CBMD Chip breaker manufacturers designation

PDR

CECC Cutting edge condition code

T - Chamfered

COATN Coating

AlTiN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

5.4 mm

DIN

IS-541263910502334

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular Inserts with 3 Helical Cutting Edges for 90° Shoulder Accuracy

GRDMFG Grade manufacturers designation

IC810

IC Inscribed circle diameter

11.4 mm

ID Technical product number

5607510

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$541263910502334

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

16.8 mm

LE Cutting edge effective length

12 mm

LOC-03 ISO

IS$$541263910502334

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-541263910502334

Name Identifying order number

HM390 TDCT 1505PDR IC810

RE Corner radius

0.8 mm

S Insert thickness

6.08 mm

Working process

No working processes available

WT Weight of item

0.01 kg
