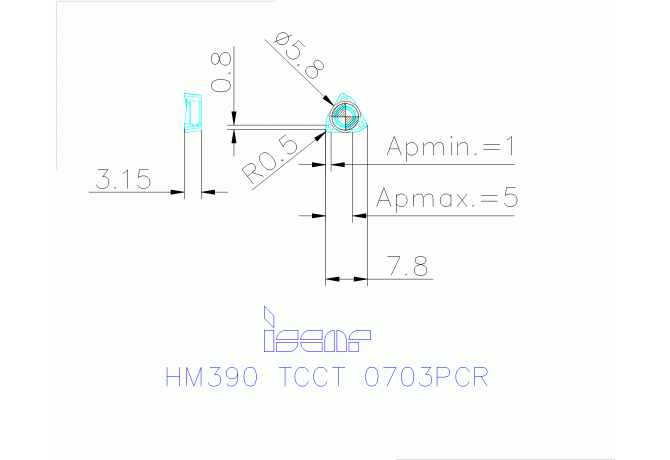

HM390 TCCT 0703PCR IC830

Артикул: 5607775

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

BS Wiper edge length

0.8 mm

CBMD Chip breaker manufacturers designation

PCR

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

D1 Fixing hole diameter

2.85 mm

DIN

IS-446183478036504

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular Inserts with 3 Helical Cutting Edges for 90° Shoulder Accuracy

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

5.8 mm

ID Technical product number

5607775

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$446183478036504

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

7.8 mm

LE Cutting edge effective length

5 mm

LOC-03 ISO

IS$$446183478036504

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-446183478036504

Name Identifying order number

HM390 TCCT 0703PCR IC830

RE Corner radius

0.5 mm

S Insert thickness

3.15 mm

Working process

No working processes available
