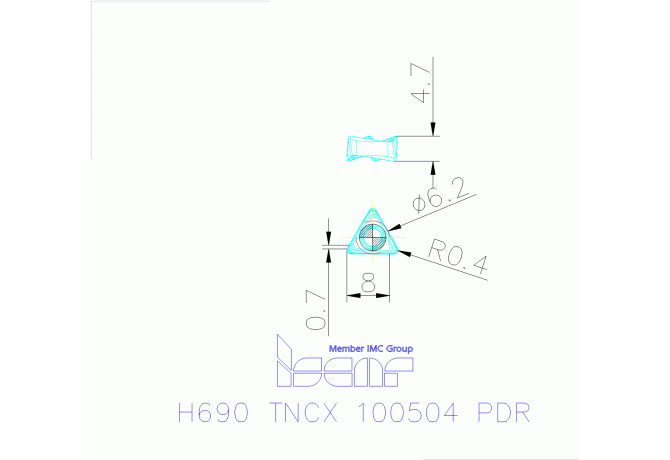

H690 TNCX 100504 PDR IC830

Артикул: 5607751

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

0.7 mm

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-377820271701720

EPSR Insert included angle

60 Degree

FamilyProducts

Triangular Inserts with 6 Helical Cutting Edges for 90° Shoulder Accuracy

GRDMFG Grade manufacturers designation

IC830

IC Inscribed circle diameter

6.2 mm

ID Technical product number

5607751

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$377820271701720

ISYC Subclass

201-01 - Triangle insert

LE Cutting edge effective length

8 mm

LOC-03 ISO

IS$$377820271701720

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-377820271701720

Name Identifying order number

H690 TNCX 100504 PDR IC830

RE Corner radius

0.4 mm

S Insert thickness

4.7 mm

Working process

No working processes available
