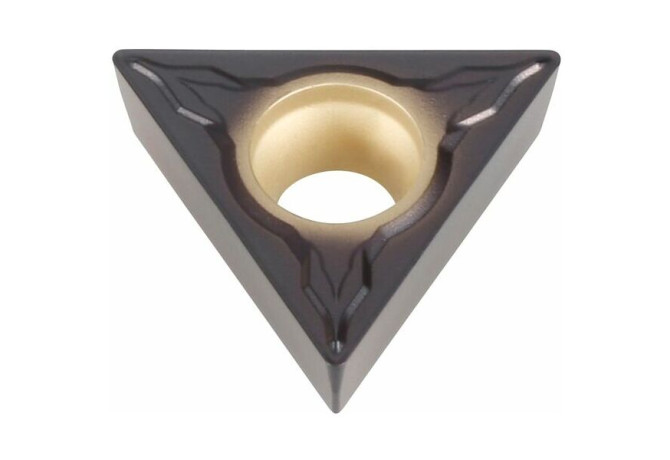

Главная Каталог продукции Toolunited 10 201-01 - Triangle insert 260958 HB7035-1

260958 HB7035-1

Артикул: 260958 HB7035-1

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiCN / Al2O3-Ti Verb

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

DIN

TC16T3083N

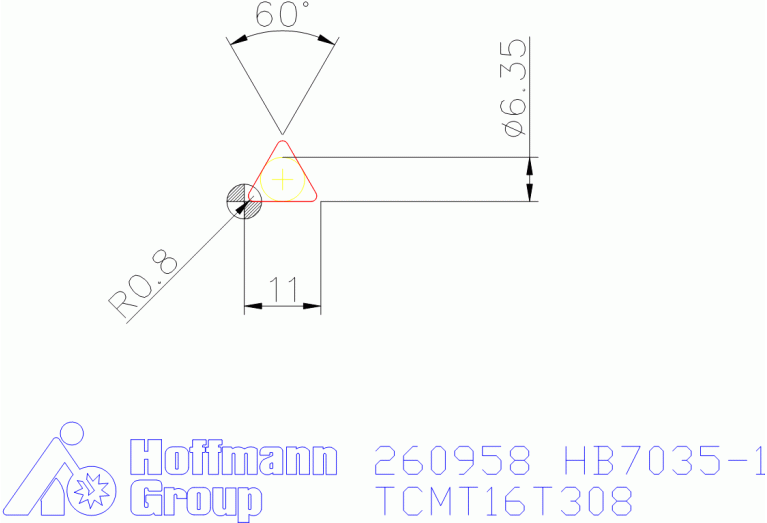

EPSR Insert included angle

60 Degree

FamilyProducts

TCMT 16T308

GAN Insert rake angle

15 Degree

GRDMFG Grade manufacturers designation

HB7035-1

IC Inscribed circle diameter

6.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-01 - Triangle insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

TC16T3083N

Name Identifying order number

260958 HB7035-1

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

TCMT16T308

STDDESAnsi Standard designation ANSI

TCMT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.03 kg
