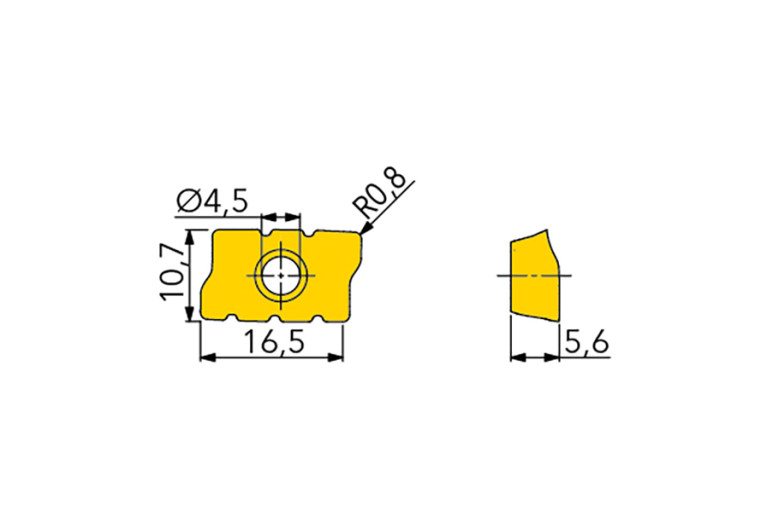

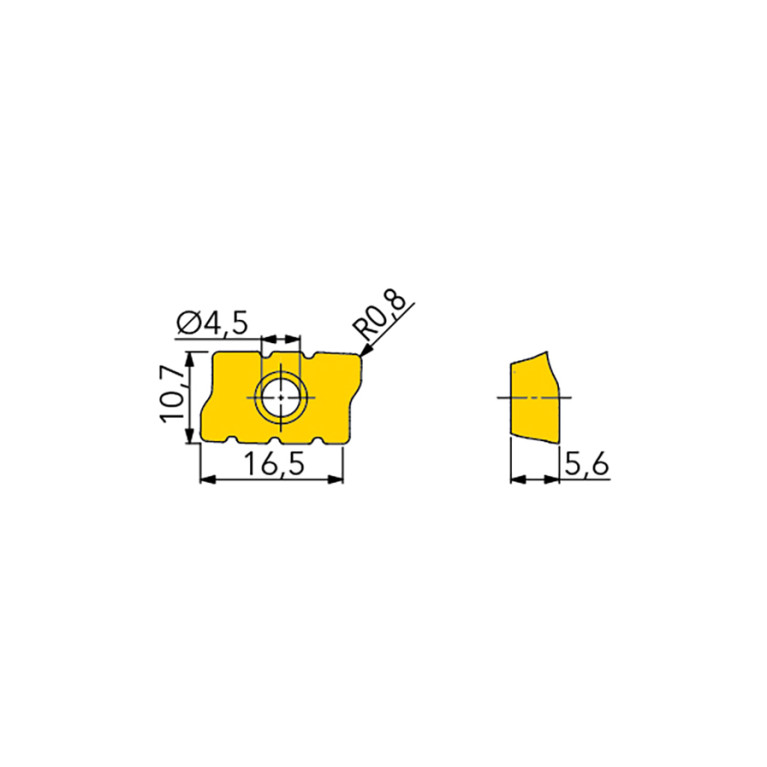

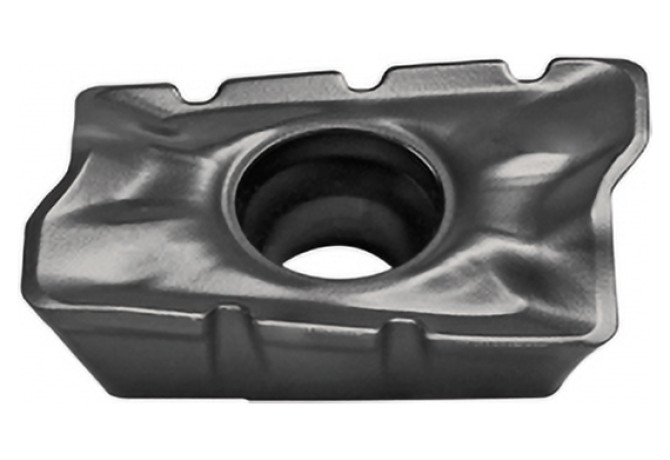

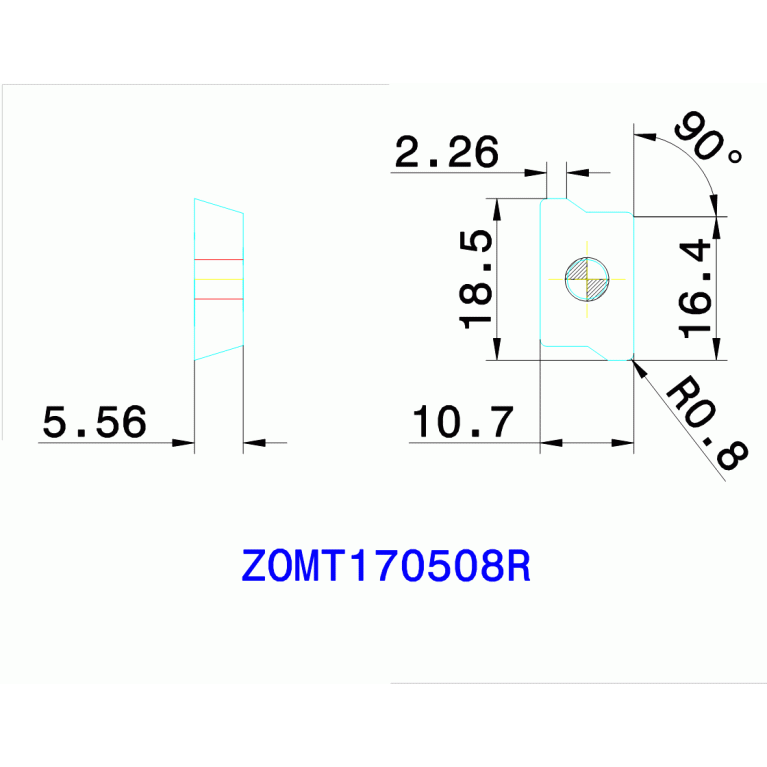

ZOMT170508R IN4030

Артикул: 5858994

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

14 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.5 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-3451

EPSR Insert included angle

85 Degree

FamilyProducts

HiPos-Plus ZOMT17 - Insert with chip splitters

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K30

GRDMFG Grade manufacturers designation

IN4030

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

10.7 mm

ID Technical product number

5858994

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15.7 mm

LE Cutting edge effective length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3451

Name Identifying order number

ZOMT170508R IN4030

S Insert thickness

5.6 mm

S1 Insert thickness total

5.6 mm

TCINS Tolerance class insert

W1 Insert width

10.7 mm

Working process

No working processes available
