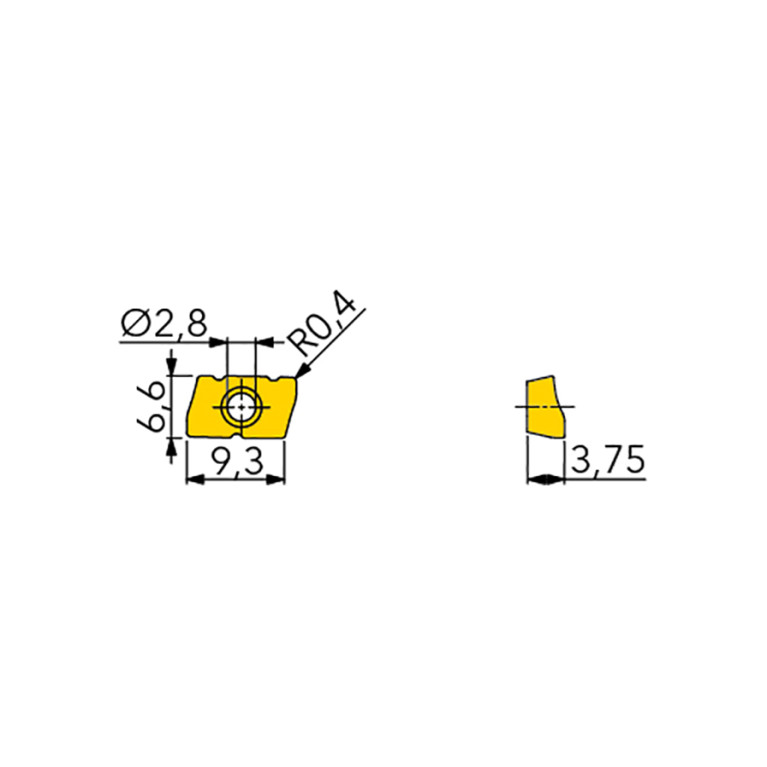

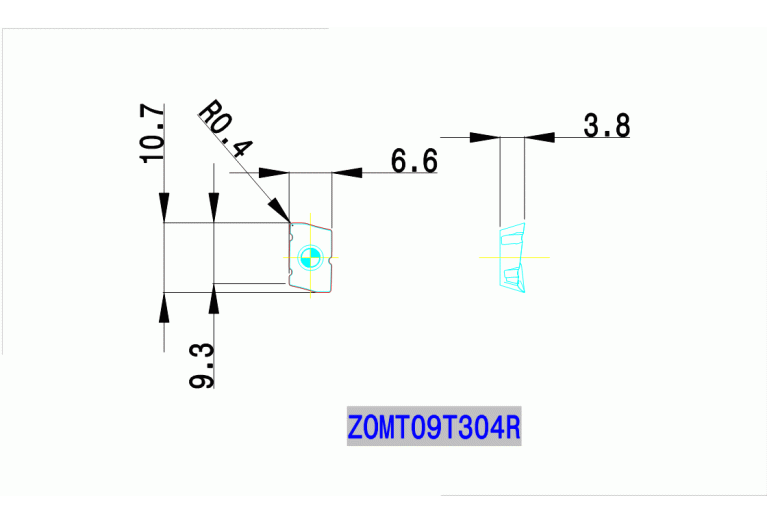

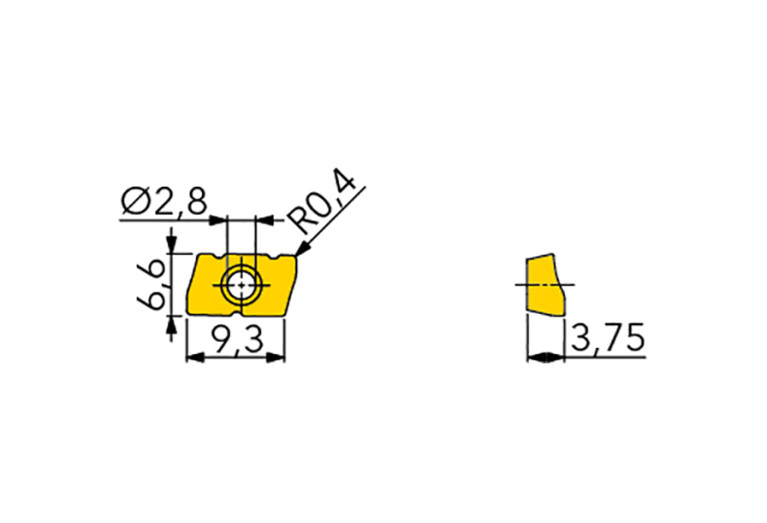

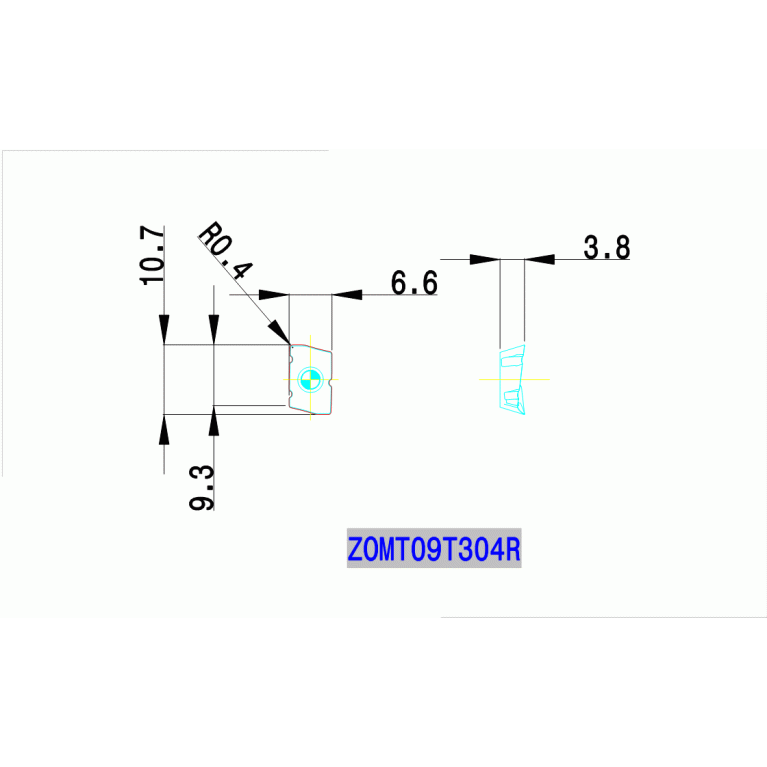

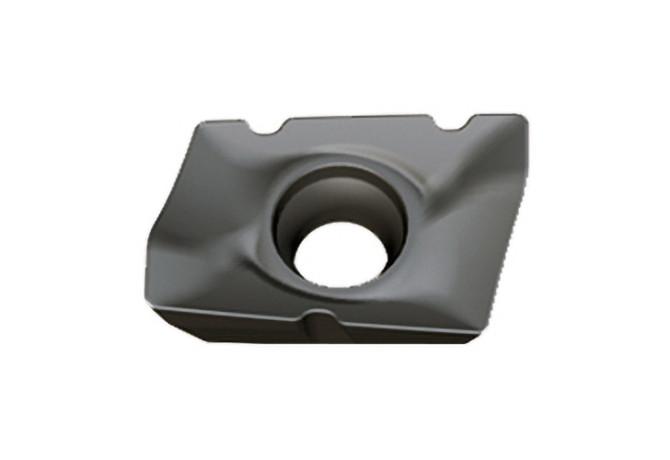

ZOMT09T304R IN4030
ZOMT09T304R IN4030
Артикул:
5858992
В наличии
Характеристики
AN Clearance angle major
13 Degree
CB Chip breaker face count
1 - With chip breaker one-side
COATN Coating
TiAlN+AlCrO
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
2.8 mm
Delivery state
LL - Stock limited
DIN
IL-WSP-3452
EPSR Insert included angle
82 Degree
FamilyProducts
HiPos-Plus ZOMT09 - Insert with chip splitters
GRD2ND Standard designation of the grade 2nd application
M15-M30
GRD3RD Standard designation of the grade 3rd application
K20-K30
GRDMFG Grade manufacturers designation
IN4030
GRDPRIO Standard designation of the grade main application
P20-P40
IC Inscribed circle diameter
6.6 mm
ID Technical product number
5858992
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
8.9 mm
LE Cutting edge effective length
9 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
IL-WSP-3452
Name Identifying order number
ZOMT09T304R IN4030
RE Corner radius
0.4 mm
S Insert thickness
3.97 mm
S1 Insert thickness total
3.75 mm
TCINS Tolerance class insert
M
W1 Insert width
6.6 mm
Working process
No working processes available
