Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified YDA323L104 IN2010

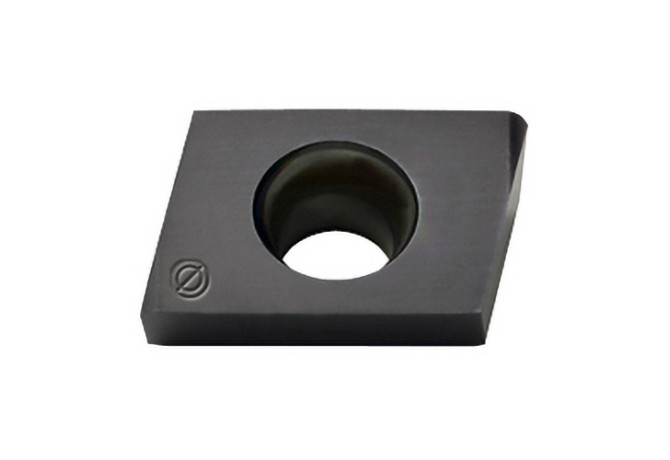

YDA323L104 IN2010

Артикул: 5864507

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

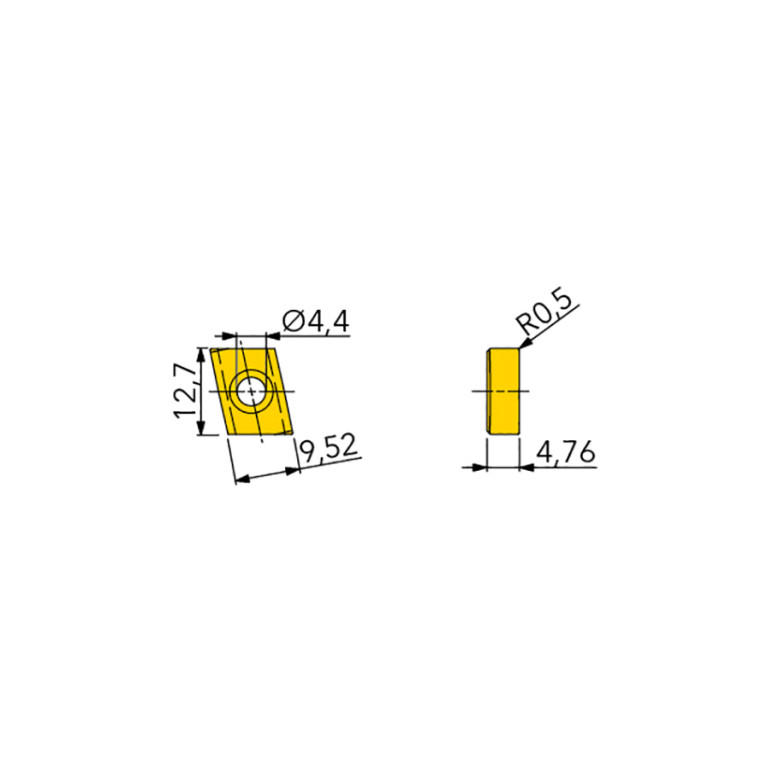

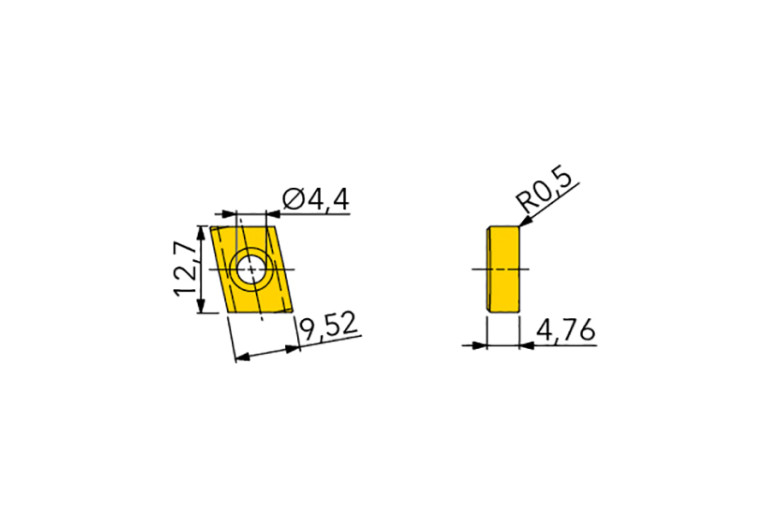

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-127

EPSR Insert included angle

78 Degree

FamilyProducts

insert, double-edged, rhombic micromill wiper finishing insert with R0,5

GRD2ND Standard designation of the grade 2nd application

K10-K30

GRDMFG Grade manufacturers designation

IN2010

ID Technical product number

5864507

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

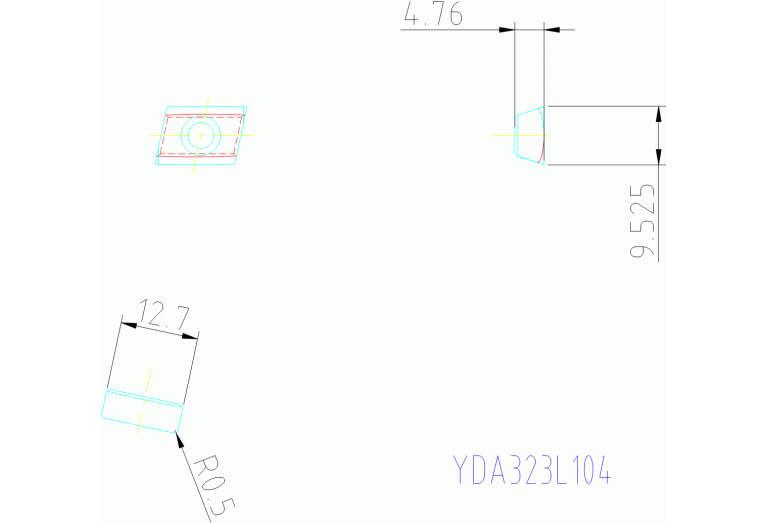

L Cutting edge length

12.7 mm

LE Cutting edge effective length

0.25 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-127

Name Identifying order number

YDA323L104 IN2010

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

W1 Insert width

9.53 mm

Working process

No working processes available
