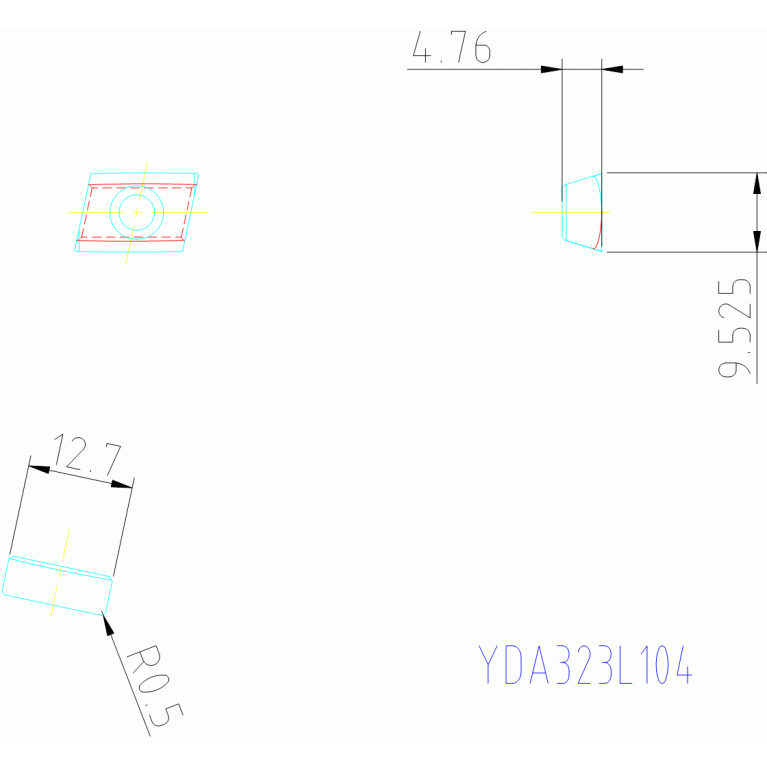

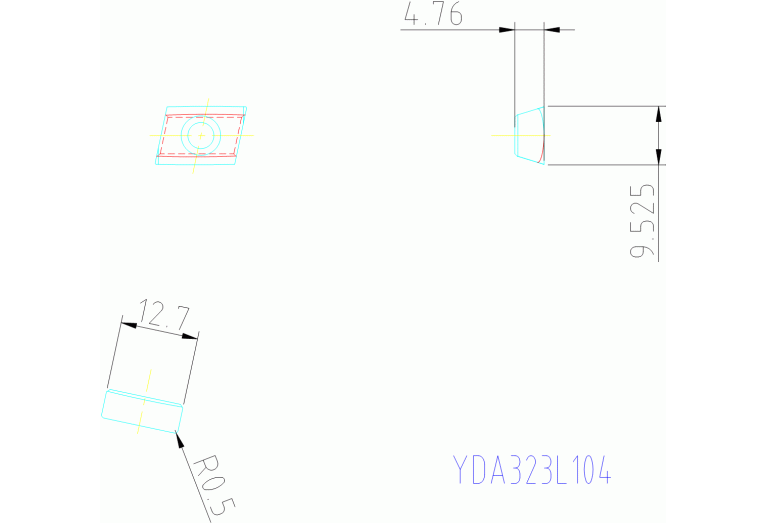

YDA323L104 IN10K
YDA323L104 IN10K
Артикул:
5867045
В наличии
Характеристики
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
4.4 mm
Delivery state
LH - Stocked
DIN
IL-WSP-127
EPSR Insert included angle
78 Degree
FamilyProducts
insert, double-edged, rhombic micromill wiper finishing insert with R0,5
GRD2ND Standard designation of the grade 2nd application
K10-K25
GRDMFG Grade manufacturers designation
IN10K
GRDPRIO Standard designation of the grade main application
N10-N25
ID Technical product number
5867045
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
L - Left
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
12.7 mm
LE Cutting edge effective length
0.25 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
IL-WSP-127
Name Identifying order number
YDA323L104 IN10K
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
W1 Insert width
9.53 mm
Working process
No working processes available
