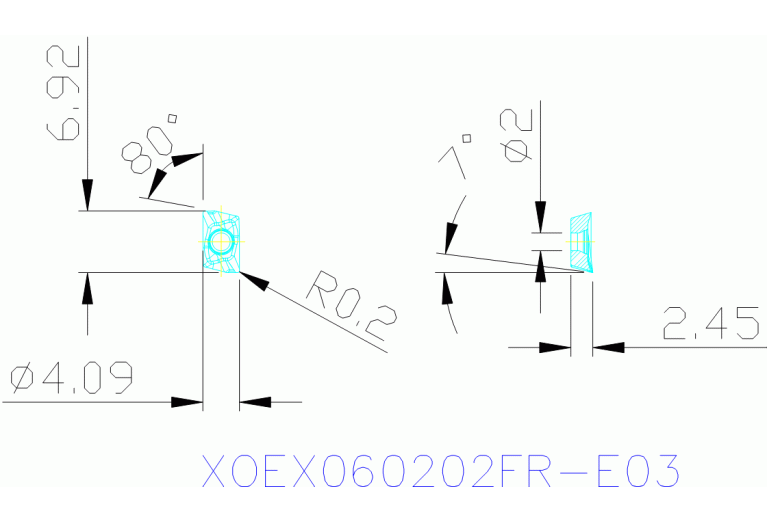

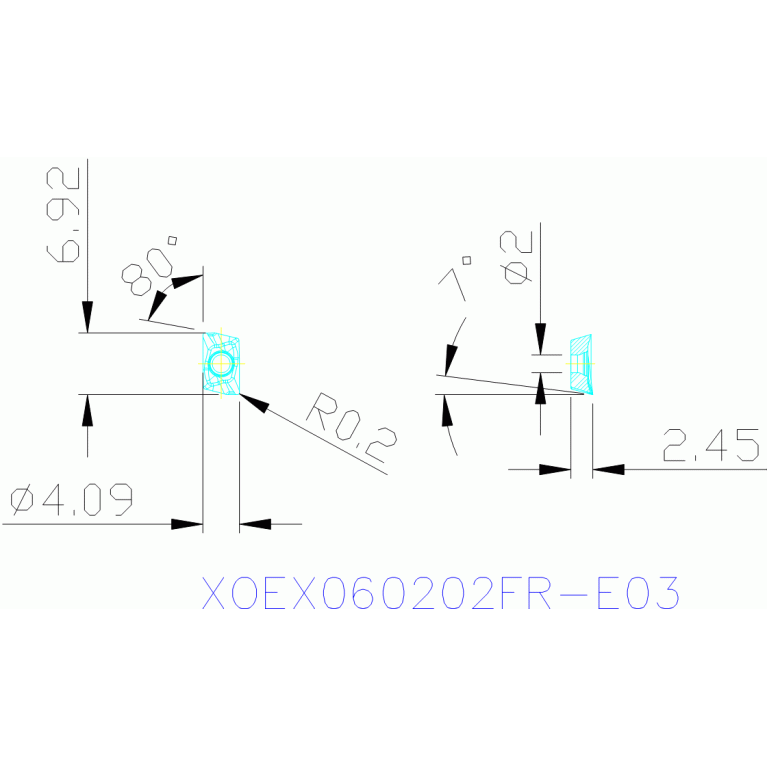

XOEX060202FR-E03 H15
XOEX060202FR-E03 H15
Артикул:
00039970
В наличии
Характеристики
AN Clearance angle major
15 Degree
BS Wiper edge length
1.1 mm
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
E03
COMPC Company code
SO - SECO Tools
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
2 mm
Delivery state valid from
12/1/2023
DIN
SO-XO0602 3R
FamilyProducts
XOEX060202FR-E03 H15
GAN Insert rake angle
30.6 Degree
GRDMFG Grade manufacturers designation
H15
ID Technical product number
00039970
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
LE Cutting edge effective length
6 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
SO-XO0602 3R
Name Identifying order number
XOEX060202FR-E03 H15
RE Corner radius
0.2 mm
S Insert thickness
2.45 mm
S1 Insert thickness total
2.45 mm
STDDES Standard designation
XOEX060202FR
TCINS Tolerance class insert
E
W1 Insert width
4.1 mm
Working process
No working processes available
