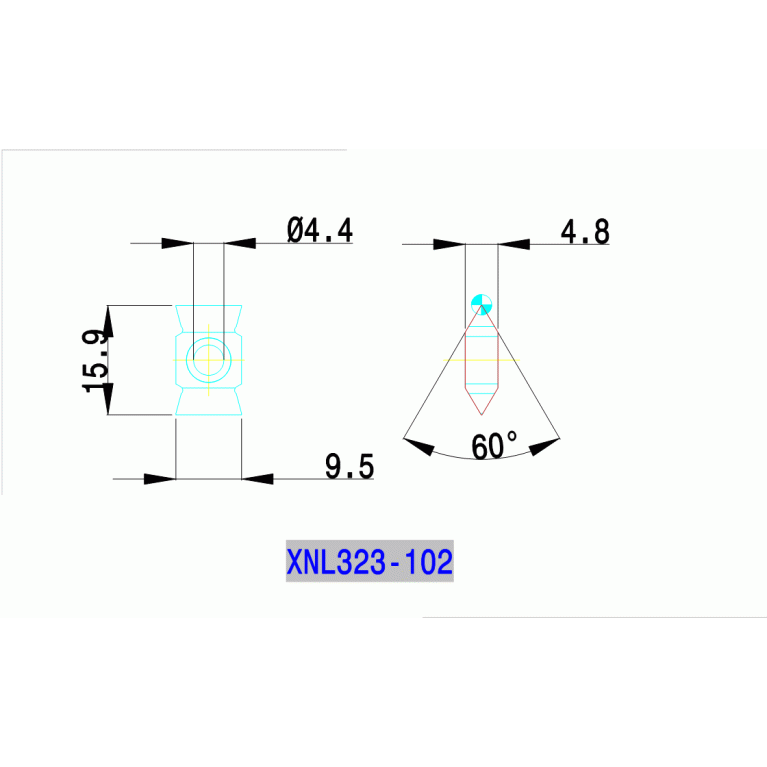

XNL323-102 IN0545
XNL323-102 IN0545
Артикул:
5861905
В наличии
Характеристики
CB Chip breaker face count
0 - Without chip breaker
COATN Coating
TiN
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
4.4 mm
Delivery state
LH - Stocked
DIN
IL-WSP-136
EPSR Insert included angle
90 Degree
FamilyProducts
insert, four-edged form insert for thread with pitch 1,5 - 2,5
GRDMFG Grade manufacturers designation
IN0545
GRDPRIO Standard designation of the grade main application
P30-P50
ID Technical product number
5861905
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
2.5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
IL-WSP-136
Name Identifying order number
XNL323-102 IN0545
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
TCINS Tolerance class insert
L
W1 Insert width
9.53 mm
Working process
No working processes available
