Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified XNL323-101 IN0545

XNL323-101 IN0545

Артикул: 5861839

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiN

COMPC Company code

IL - Ingersoll

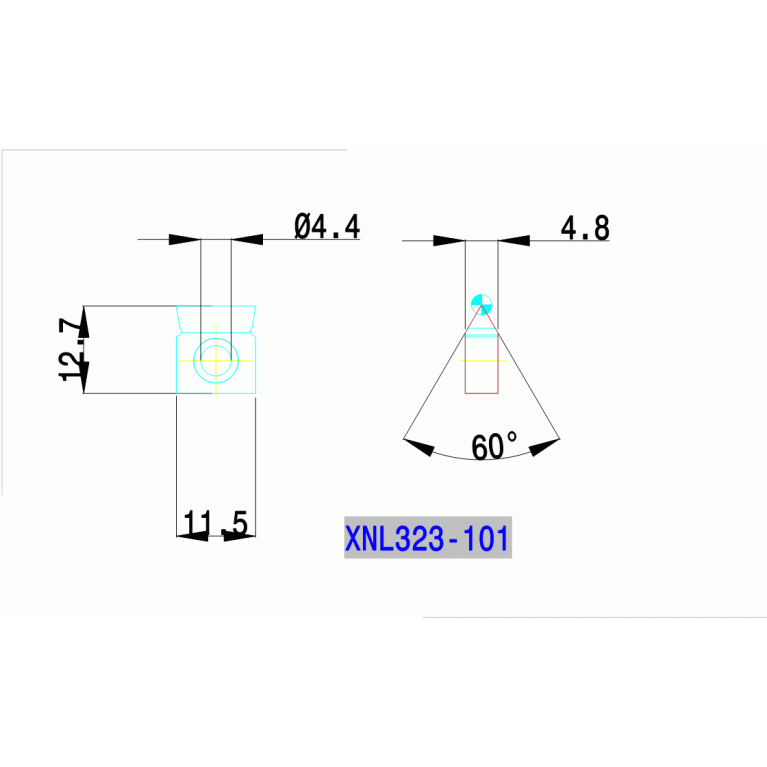

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-135

EPSR Insert included angle

90 Degree

FamilyProducts

insert, double-edged form insert for thread with pitch 2 - 5

GRDMFG Grade manufacturers designation

IN0545

GRDPRIO Standard designation of the grade main application

P30-P50

ID Technical product number

5861839

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-135

Name Identifying order number

XNL323-101 IN0545

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

W1 Insert width

11.5 mm

Working process

No working processes available
