Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified XEVT160512FR-P IN10K

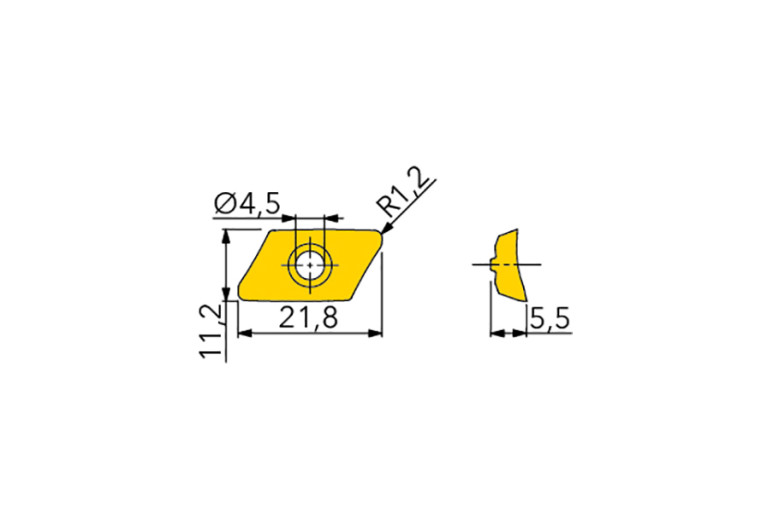

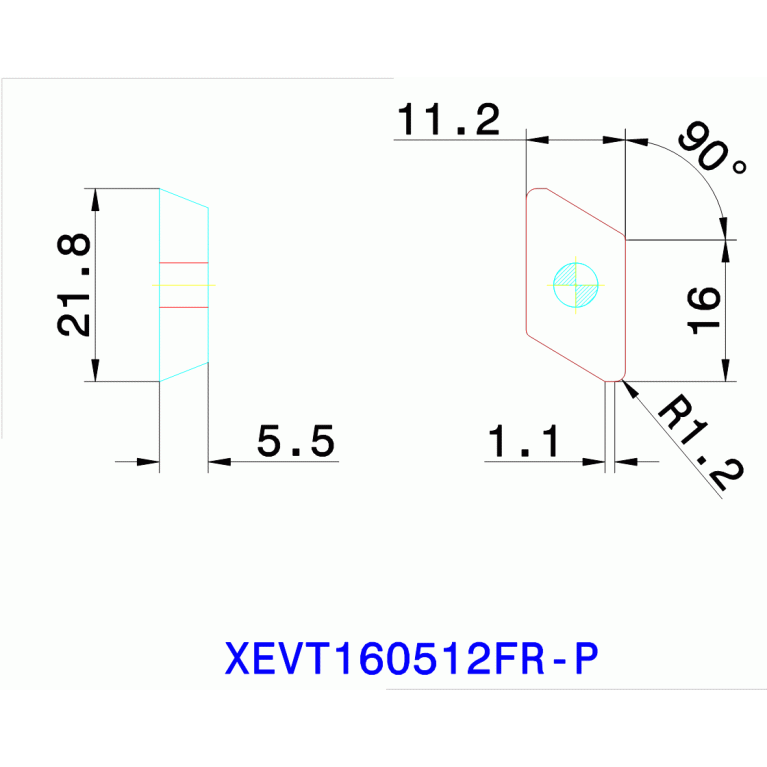

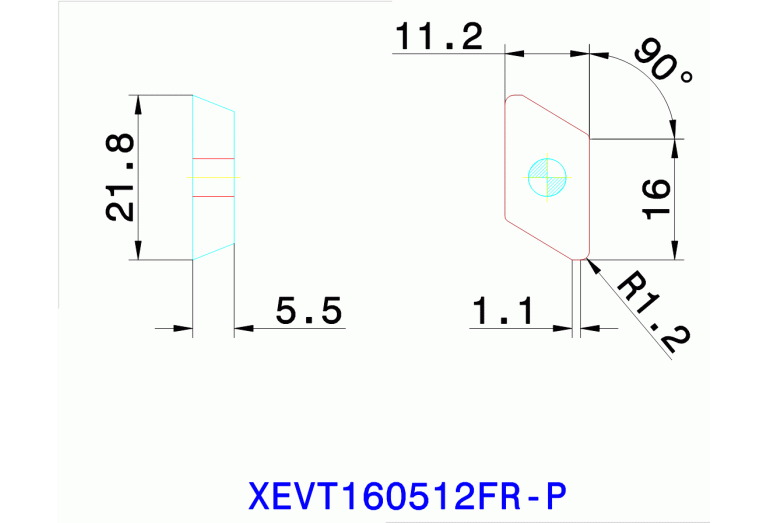

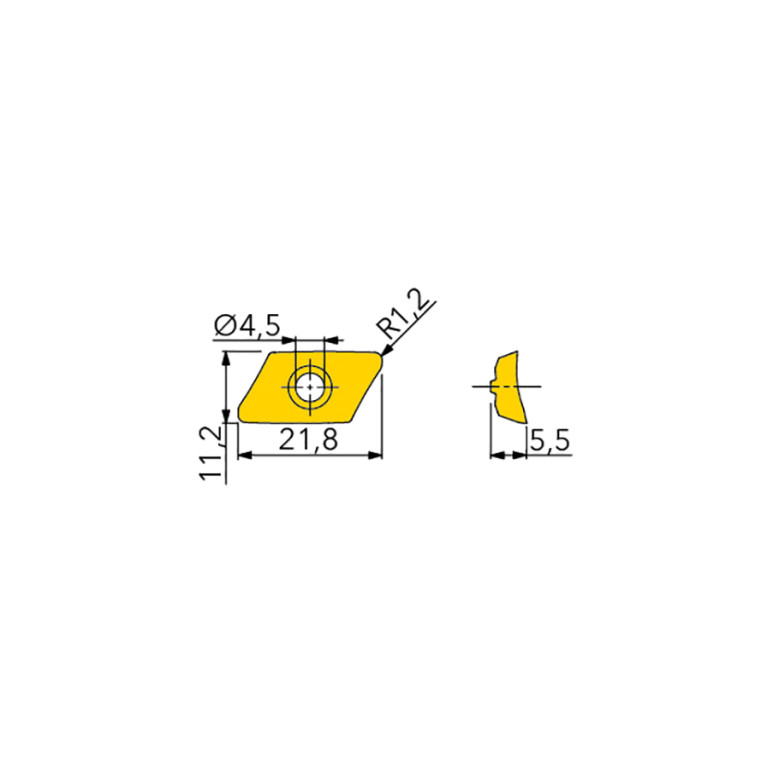

XEVT160512FR-P IN10K

Артикул: 6120031

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.5 mm

Delivery state

LL - Stock limited

DIN

XE1605 3N

EPSR Insert included angle

60 Degree

FamilyProducts

insert, two-edged, positive, polished and sharp-edged geometry for non-ferrous materials with R1,2

GRD2ND Standard designation of the grade 2nd application

K10-K25

GRDMFG Grade manufacturers designation

IN10K

GRDPRIO Standard designation of the grade main application

N10-N25

IC Inscribed circle diameter

11.2 mm

ID Technical product number

6120031

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15.84 mm

LE Cutting edge effective length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XE1605 3N

Name Identifying order number

XEVT160512FR-P IN10K

RE Corner radius

1.2 mm

S Insert thickness

5.5 mm

S1 Insert thickness total

5.5 mm

STDDES Standard designation

XEVT160512FR

W1 Insert width

11.2 mm

Working process

No working processes available
