Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified UNLU0603M0TR IN7035

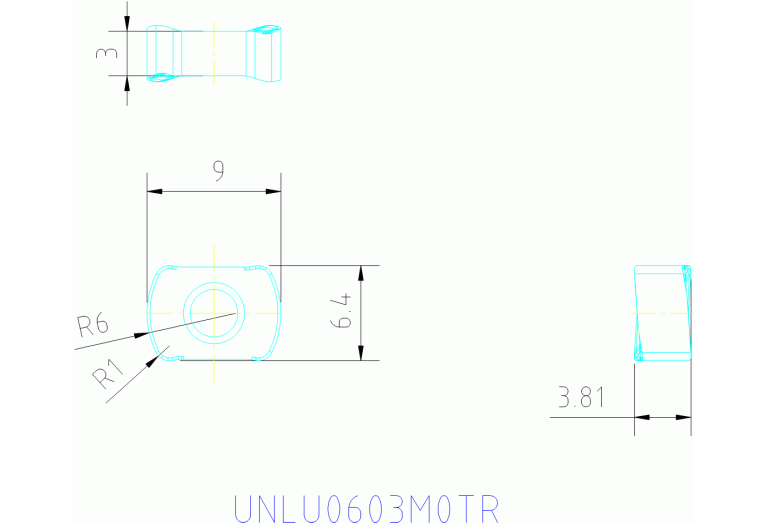

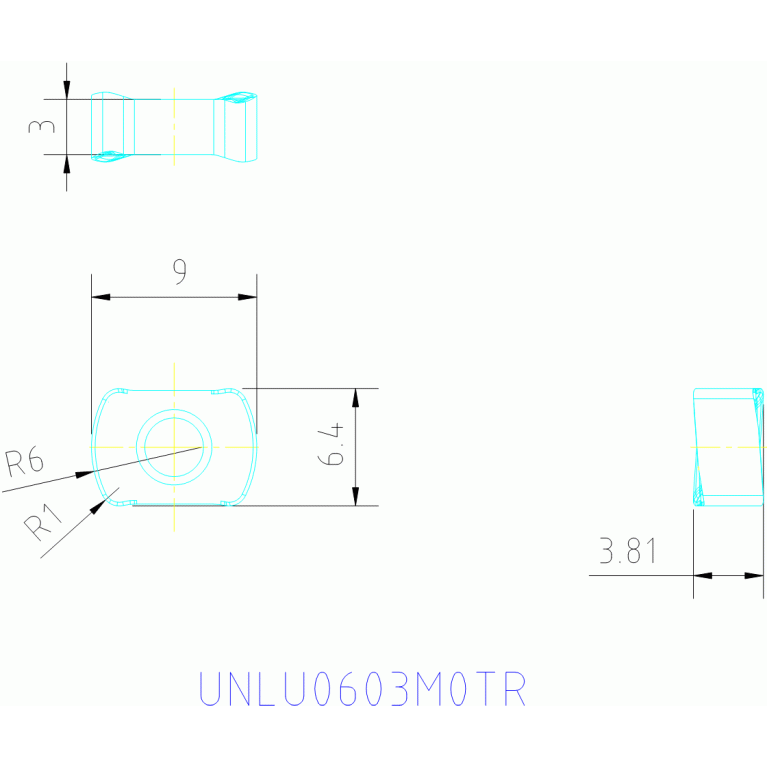

UNLU0603M0TR IN7035

Артикул: 5850713

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.3 mm

Delivery state

LL - Stock limited

DIN

UN0603 5N

FamilyProducts

insert, four-edged, semi positive geometry

GRD2ND Standard designation of the grade 2nd application

M20-M35

GRD3RD Standard designation of the grade 3rd application

S15-S30

GRDMFG Grade manufacturers designation

IN7035

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

6.39 mm

ID Technical product number

5850713

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

1 mm

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

UN0603 5N

Name Identifying order number

UNLU0603M0TR IN7035

S Insert thickness

3.73 mm

S1 Insert thickness total

3.73 mm

STDDES Standard designation

UNLU0603M0TR

TCINS Tolerance class insert

W1 Insert width

6.39 mm

Working process

No working processes available
