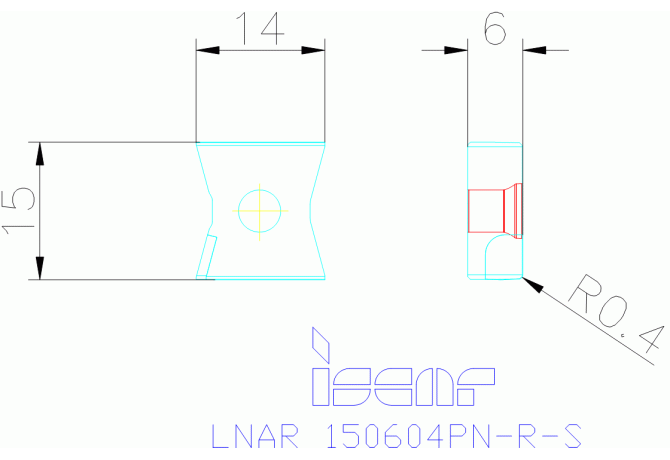

LNAR 150604PN-R-S

Артикул: 5604758

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CECC Cutting edge condition code

T - Chamfered

COMPC Company code

IS - Iscar

DIN

IS-377508526431549

EPSR Insert included angle

90 Degree

FamilyProducts

Tangentially Clamped Insert with a Brazed PCD Tip for Machining Aluminum

ID Technical product number

5604758

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$377508526431549

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

15.06 mm

LOC-03 ISO

IS$$377508526431549

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-377508526431549

Name Identifying order number

LNAR 150604PN-R-S

RE Corner radius

0.4 mm

S Insert thickness

14 mm

TCE Tipped cutting edge code

W1 Insert width

6 mm

Working process

No working processes available

WT Weight of item

0.01 kg
