Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified IXE414-002 IN2505

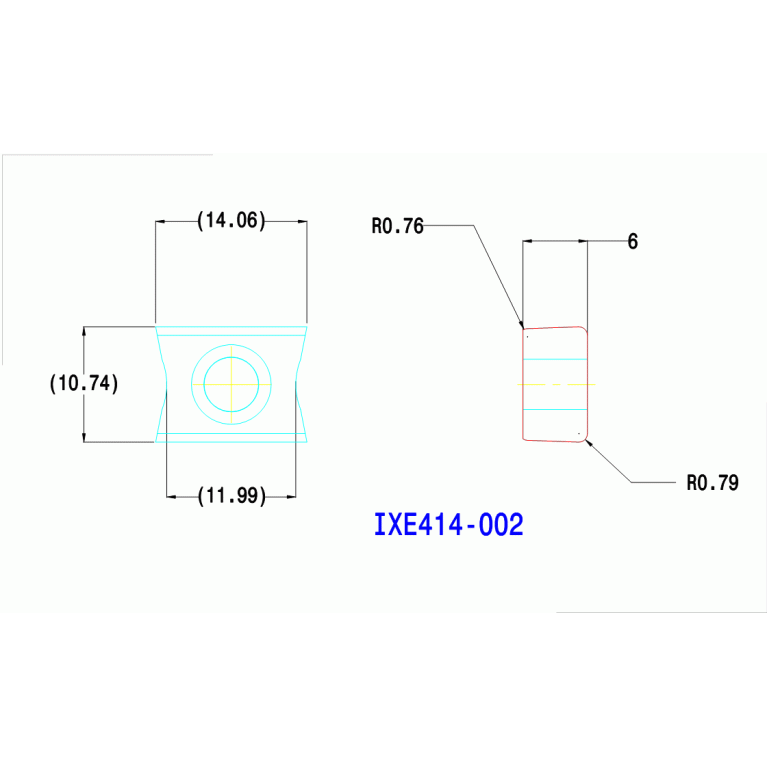

IXE414-002 IN2505

Артикул: 5832377

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-3476

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

ID Technical product number

5832377

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

5.2 mm

LE Cutting edge effective length

5.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3476

Name Identifying order number

IXE414-002 IN2505

S Insert thickness

5.99 mm

S1 Insert thickness total

5.99 mm

TCINS Tolerance class insert

W1 Insert width

14.05 mm

Working process

No working processes available
