Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified IXE414-001 IN4035

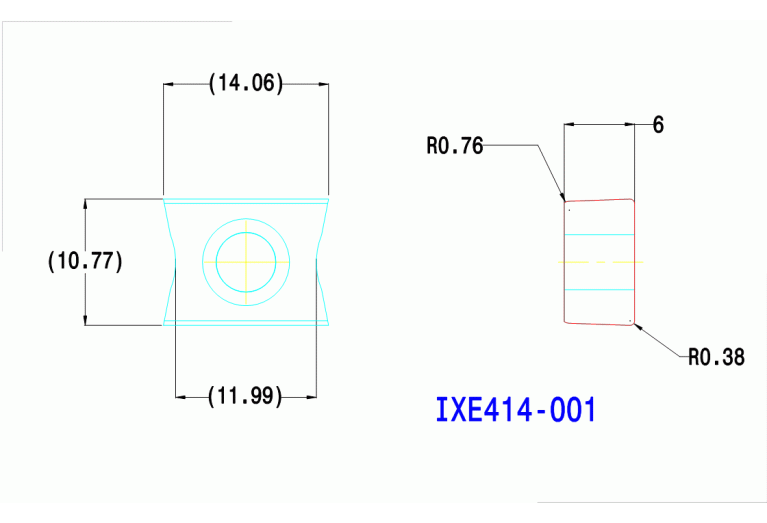

IXE414-001 IN4035

Артикул: 2907801

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-3475

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S30

GRDMFG Grade manufacturers designation

IN4035

GRDPRIO Standard designation of the grade main application

P25-P50

ID Technical product number

2907801

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

5.6 mm

LE Cutting edge effective length

5.2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3475

Name Identifying order number

IXE414-001 IN4035

S Insert thickness

5.99 mm

S1 Insert thickness total

5.99 mm

TCINS Tolerance class insert

W1 Insert width

14.05 mm

Working process

No working processes available
