Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified GQHG1604R15 IN2005

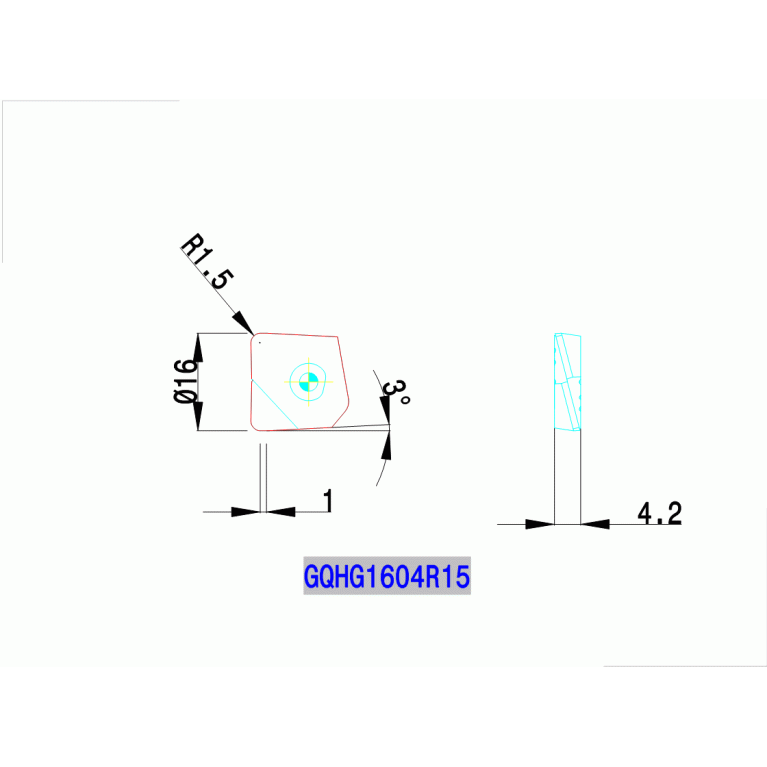

GQHG1604R15 IN2005

Артикул: 5813345

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

LL - Stock limited

DIN

GQ1604 2N

EPSR Insert included angle

85 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

16 mm

ID Technical product number

5813345

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

1 mm

LE Cutting edge effective length

2.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

GQ1604 2N

Name Identifying order number

GQHG1604R15 IN2005

RE Corner radius

1.5 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

TCINS Tolerance class insert

W1 Insert width

16 mm

Working process

No working processes available
