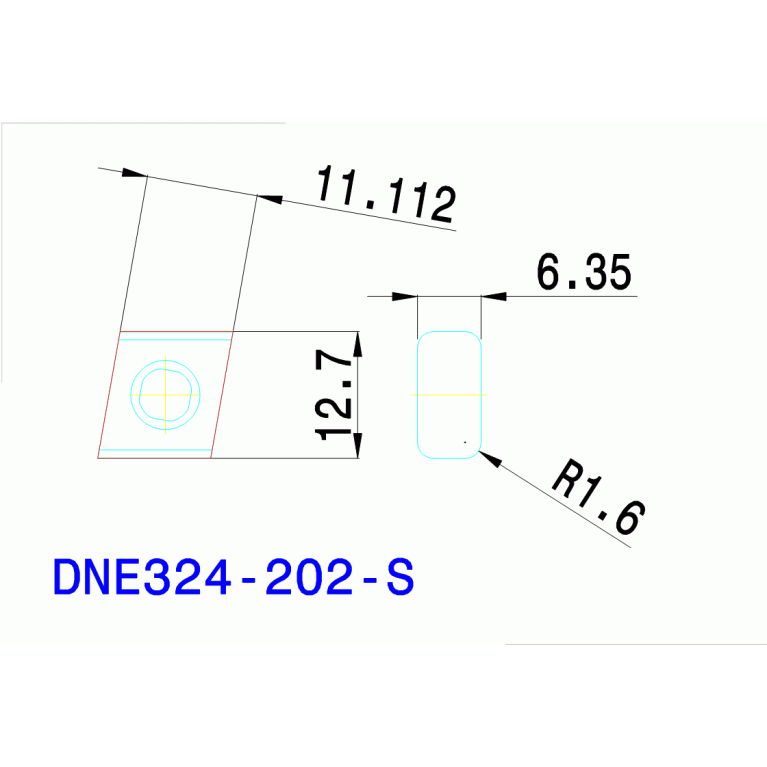

DNE324-202-S IN4015
DNE324-202-S IN4015
Артикул:
5896949
В наличии
Характеристики
CB Chip breaker face count
0 - Without chip breaker
COATN Coating
TiAlN+AlCrO
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
4.4 mm
Delivery state
LL - Stock limited
DIN
IL-WSP-4143
EPSR Insert included angle
80 Degree
FamilyProducts
DNE 324
GRD2ND Standard designation of the grade 2nd application
K30-K50
GRDMFG Grade manufacturers designation
IN4015
GRDPRIO Standard designation of the grade main application
P20-P35
ID Technical product number
5896949
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
10.6 mm
LE Cutting edge effective length
12.2 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
IL-WSP-4143
Name Identifying order number
DNE324-202-S IN4015
RE Corner radius
0.2 mm
S Insert thickness
6.35 mm
S1 Insert thickness total
6.35 mm
TCINS Tolerance class insert
E
W1 Insert width
11.1 mm
Working process
No working processes available
