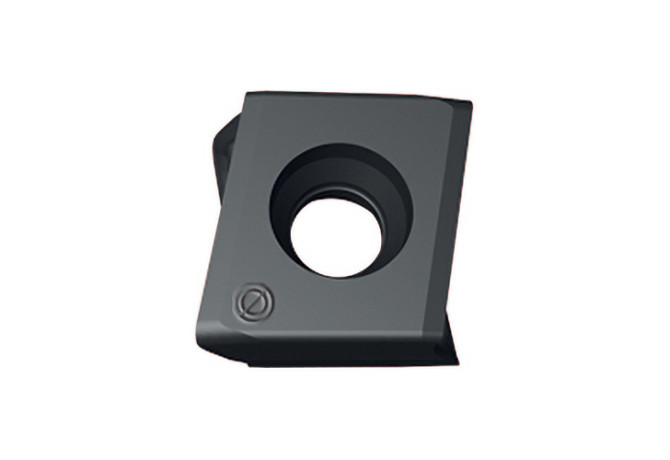

Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified DGM313R301 IN2505

DGM313R301 IN2505

Артикул: 5891914

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

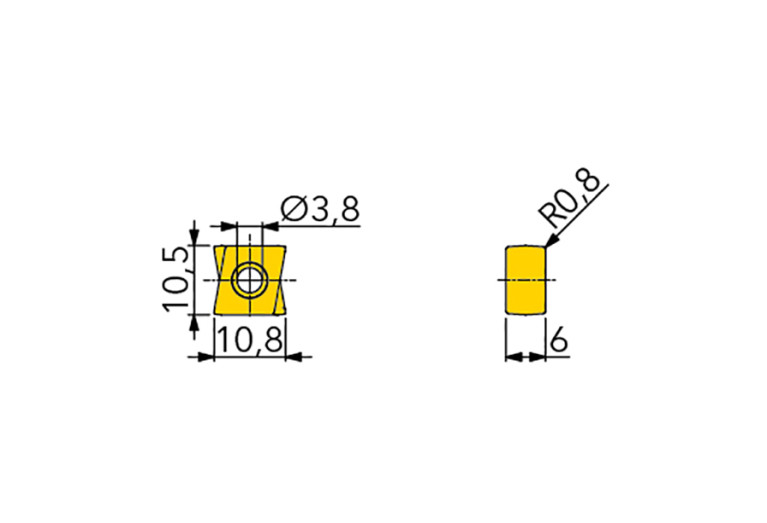

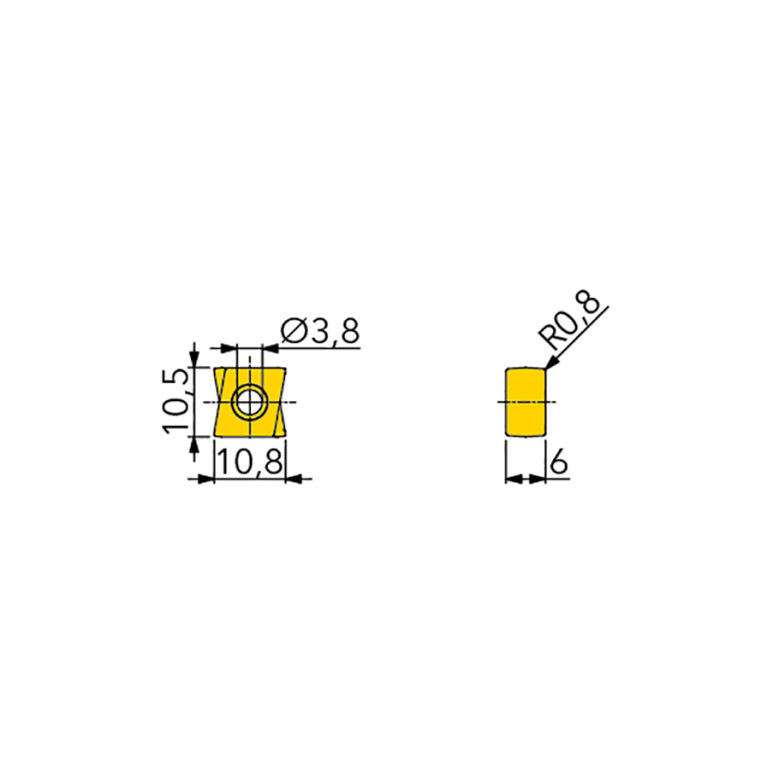

D1 Fixing hole diameter

3.8 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-4091

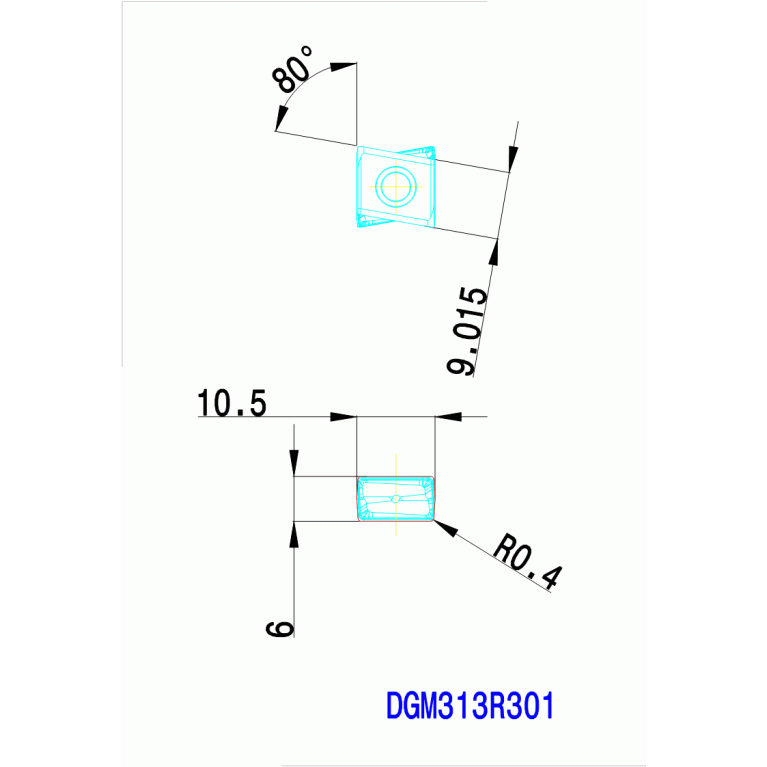

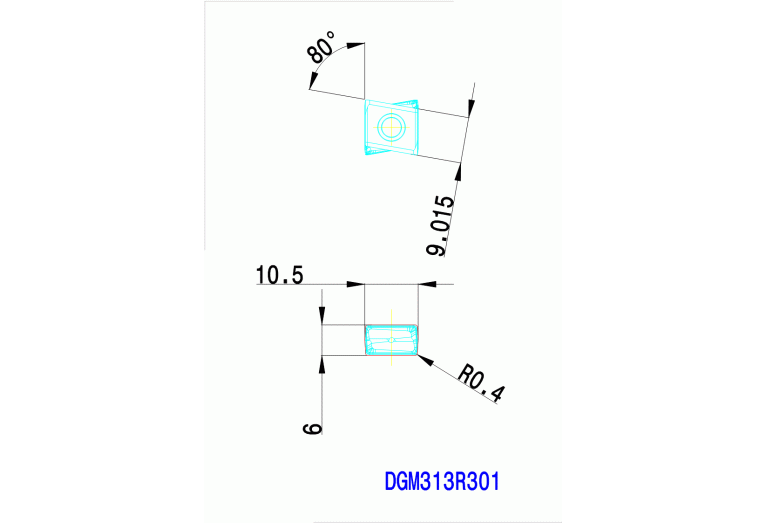

EPSR Insert included angle

80 Degree

FamilyProducts

insert, four-edged, positive geometry with R0,8

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

ID Technical product number

5891914

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

8.9 mm

LE Cutting edge effective length

9.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4091

Name Identifying order number

DGM313R301 IN2505

RE Corner radius

0.8 mm

S Insert thickness

6 mm

S1 Insert thickness total

6 mm

TCINS Tolerance class insert

W1 Insert width

10.8 mm

Working process

No working processes available
