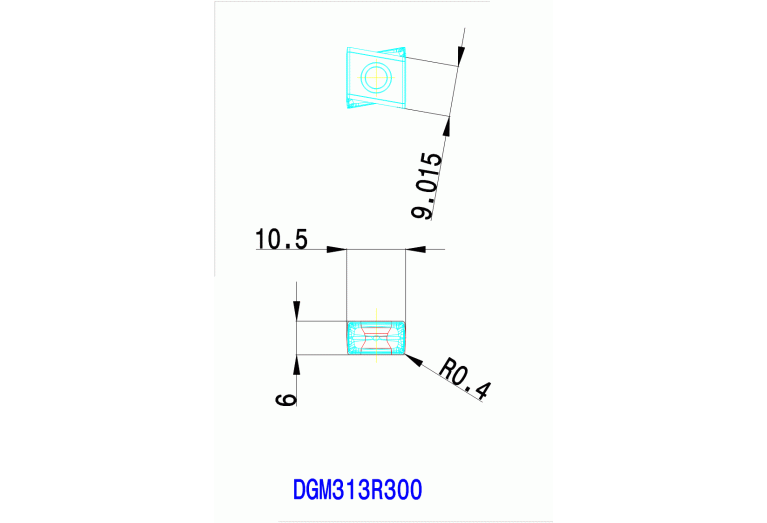

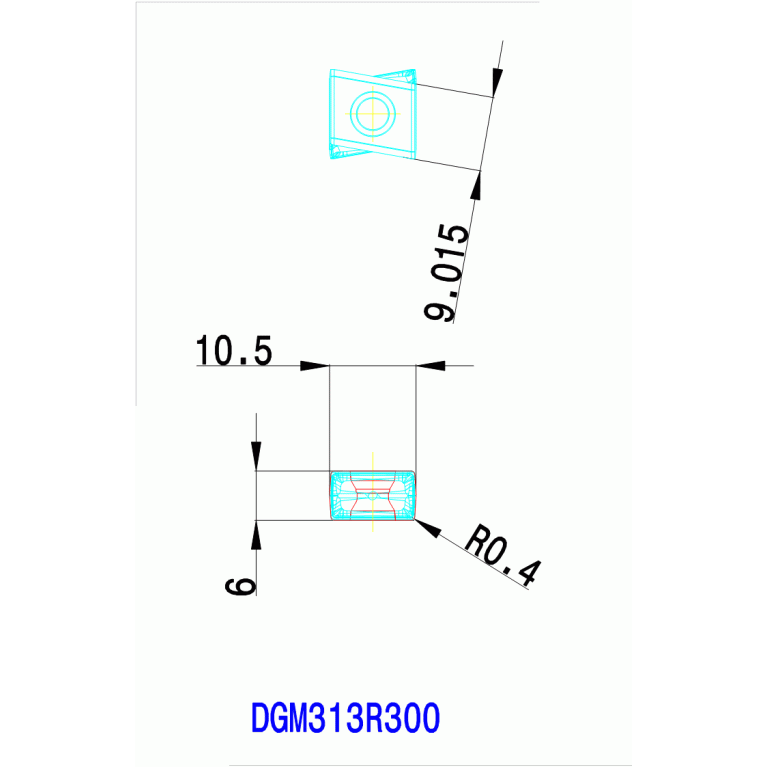

DGM313R300 IN4015

Артикул: 5891910

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

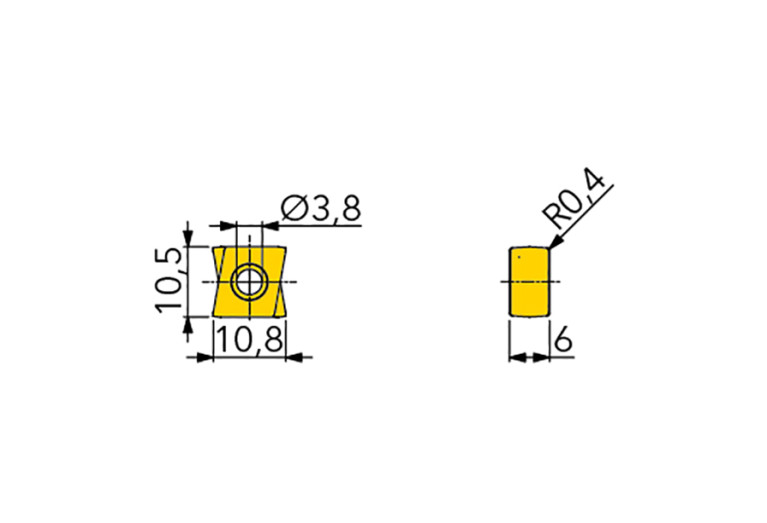

D1 Fixing hole diameter

3.8 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-4090

EPSR Insert included angle

80 Degree

FamilyProducts

insert, four-edged, positive geometry with R0,4

GRD2ND Standard designation of the grade 2nd application

K30-K50

GRDMFG Grade manufacturers designation

IN4015

GRDPRIO Standard designation of the grade main application

P20-P35

ID Technical product number

5891910

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

9.7 mm

LE Cutting edge effective length

9.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4090

Name Identifying order number

DGM313R300 IN4015

RE Corner radius

0.4 mm

S Insert thickness

6 mm

S1 Insert thickness total

6 mm

TCINS Tolerance class insert

W1 Insert width

10.8 mm

Working process

No working processes available
