Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified DGM212R100 IN4030

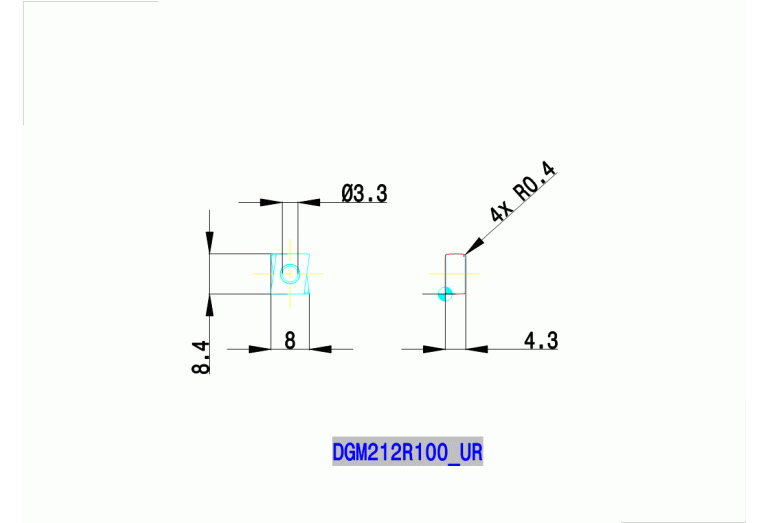

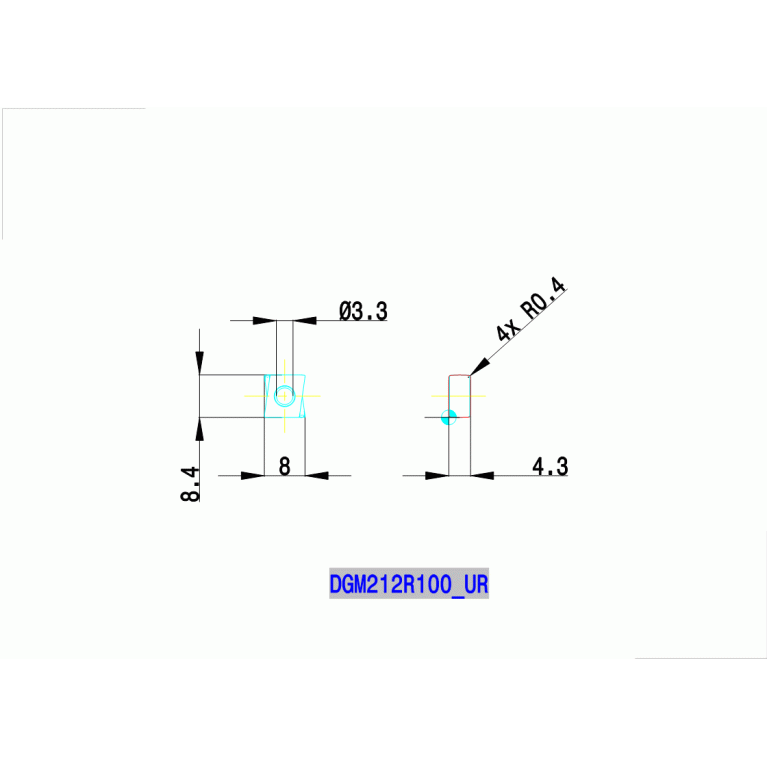

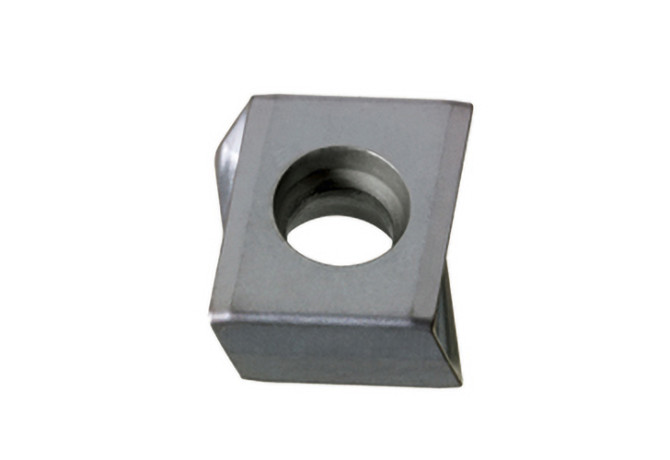

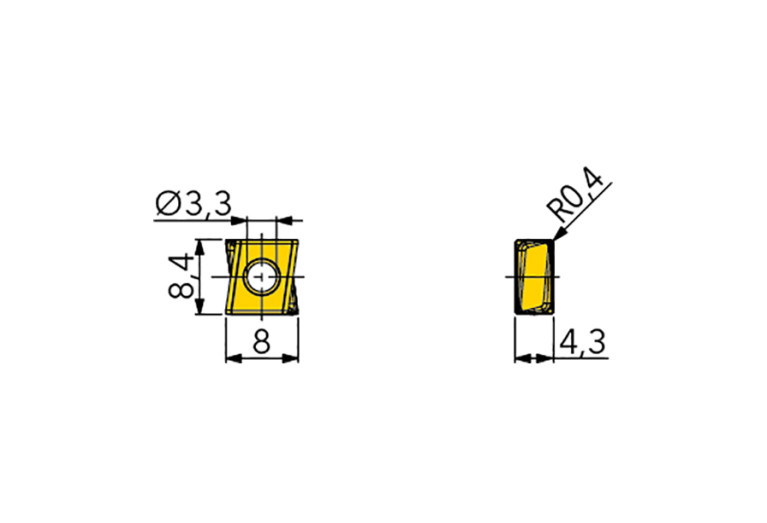

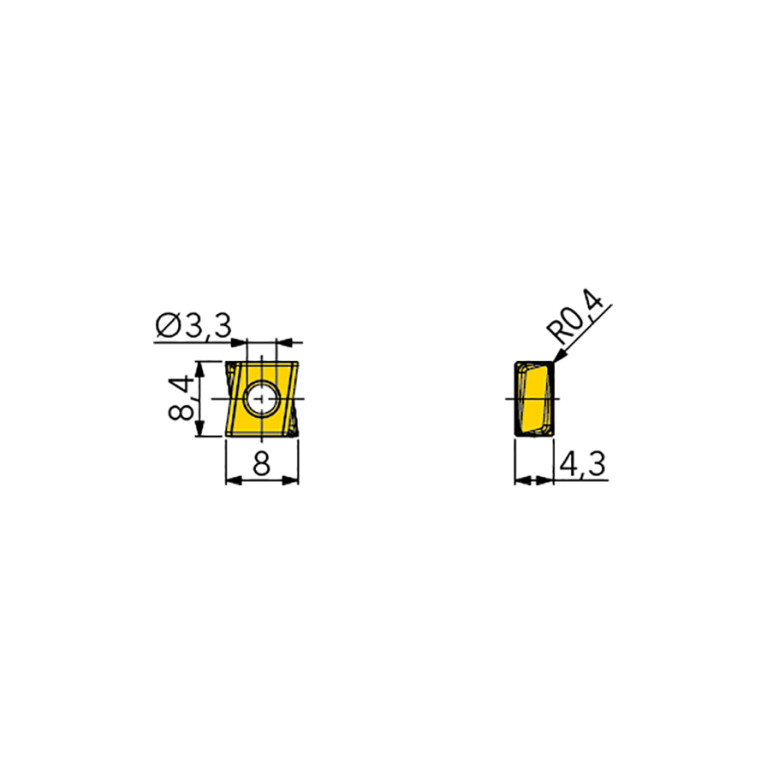

DGM212R100 IN4030

Артикул: 5862515

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.4 mm

Delivery state

LL - Stock limited

DIN

IL-WSP-2848

EPSR Insert included angle

82 Degree

FamilyProducts

insert, four-edged, positive geometry with R0,4

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K30

GRDMFG Grade manufacturers designation

IN4030

GRDPRIO Standard designation of the grade main application

P20-P40

ID Technical product number

5862515

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

7.6 mm

LE Cutting edge effective length

8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-2848

Name Identifying order number

DGM212R100 IN4030

S Insert thickness

4.3 mm

S1 Insert thickness total

4.3 mm

TCINS Tolerance class insert

W1 Insert width

8 mm

Working process

No working processes available
