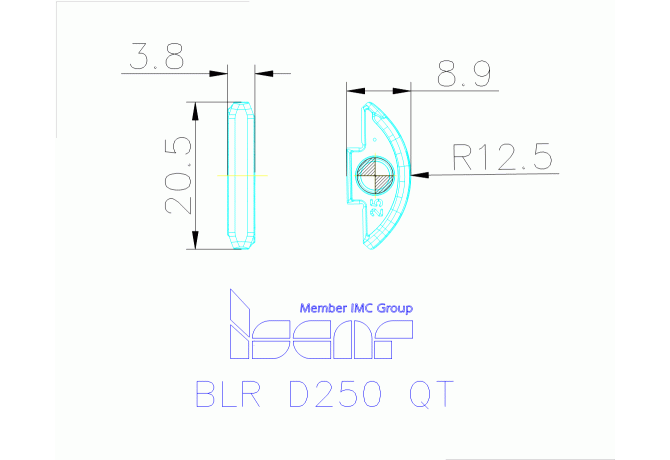

BLR D250-QT IC882

Артикул: 3309410

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN+TiN

COMPC Company code

IS - Iscar

DIN

IS-19305621044115

FamilyProducts

Round Segment Double-Sided Inserts for Ball Nose Milling Cutters

GRDMFG Grade manufacturers designation

IC882

ID Technical product number

3309410

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$19305621044115

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

20.5 mm

LOC-03 ISO

IS$$19305621044115

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-19305621044115

Name Identifying order number

BLR D250-QT IC882

RE Corner radius

12.5 mm

S Insert thickness

3.8 mm

W1 Insert width

8.9 mm

Working process

No working processes available

WT Weight of item

0.01 kg
