Главная Каталог продукции Toolunited 10 201-00 - Regular Insert unspecified BLR D200-MFW IC830

BLR D200-MFW IC830

Артикул: 5667080

В наличии

В корзину

Описание

Характеристики

CECC Cutting edge condition code

T - Chamfered

COATN Coating

TiAlN/AlTiN+TiN

COMPC Company code

IS - Iscar

DIN

IS-19305596188945

FamilyProducts

Round Segment Double-Sided Inserts for Ball Nose Milling Cutters

GRDMFG Grade manufacturers designation

IC830

ID Technical product number

5667080

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$19305596188945

ISYC Subclass

201-00 - Regular Insert unspecified

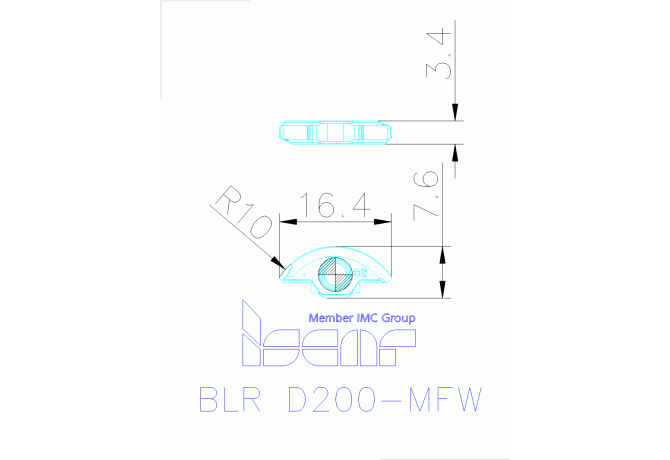

L Cutting edge length

16.4 mm

LOC-03 ISO

IS$$19305596188945

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-19305596188945

Name Identifying order number

BLR D200-MFW IC830

RE Corner radius

10 mm

S Insert thickness

3.4 mm

W1 Insert width

7.6 mm

Working process

No working processes available
