Главная Каталог продукции Toolunited 10 16NR10W CP200

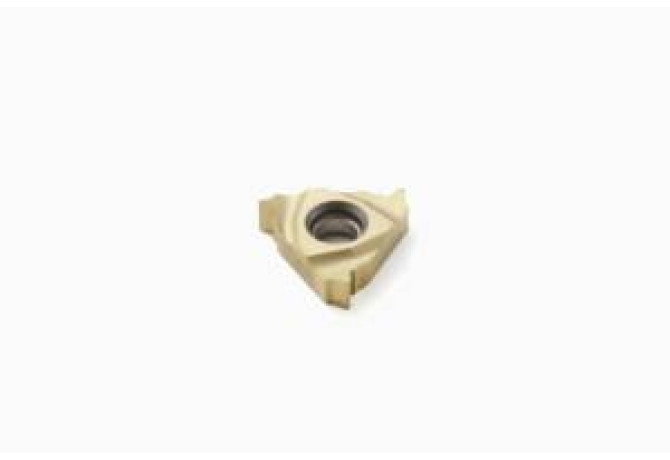

16NR10W CP200

Артикул: 00076250

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

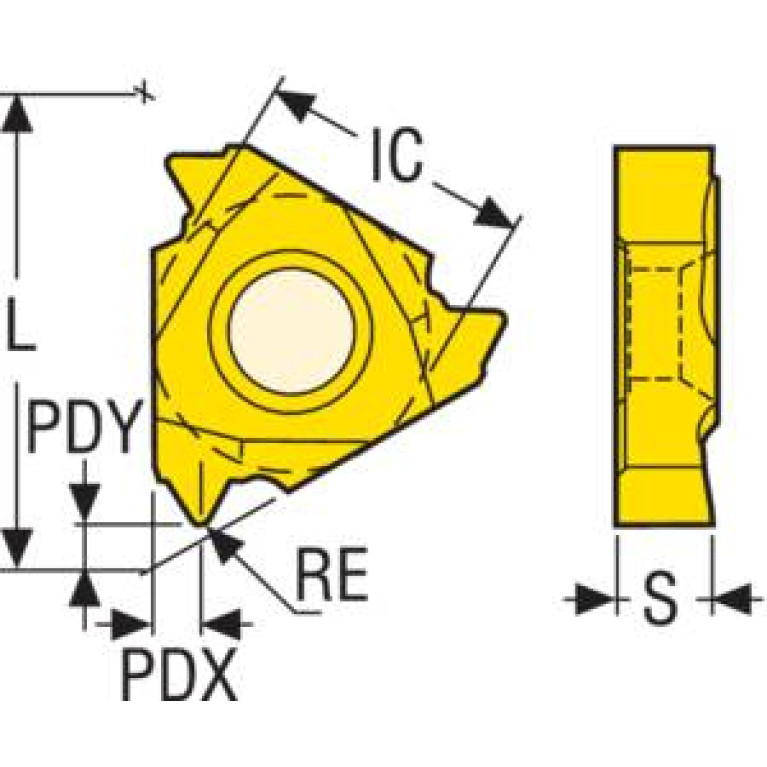

CRE Spot radius

0.27 mm

Delivery state valid from

3/14/2020

FamilyProducts

16NR10W CP200

GRDMFG Grade manufacturers designation

CP200

IC Inscribed circle diameter

9.525 mm

ID Technical product number

00076250

IH Insert hand

R - Right

Interface codes

/ J61

ISO

SO$$NR16R

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03 ISO

SO$$NR16R

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

16NR10W CP200

NOF Flute count

NT Tooth count

PDX Profile distance X

1.5 mm

PDY Profile distance Y

1.2 mm

PFS Profile form

PNA Profile included angle

55 Degree

S Insert thickness

3.47 mm

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TTP Thread type

I - Internal thread

Working process

No working processes available

WT Weight of item

0.004 kg
