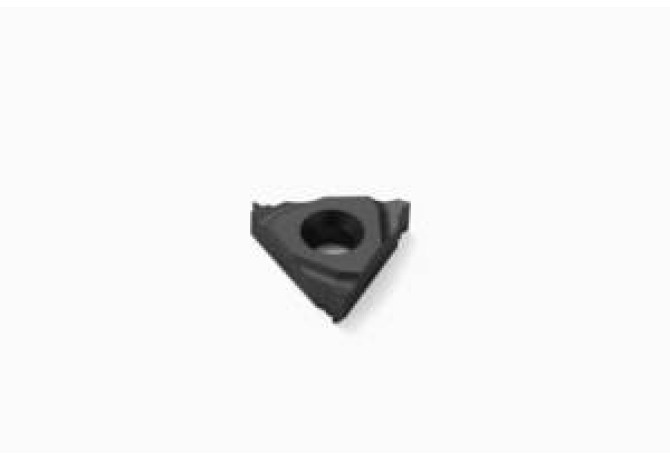

16NL1.5ISO TM4000

Артикул: 02964983

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

DIN

SO-SO 16NL

FamilyProducts

16NL1.5ISO TM4000

GRDMFG Grade manufacturers designation

TM4000

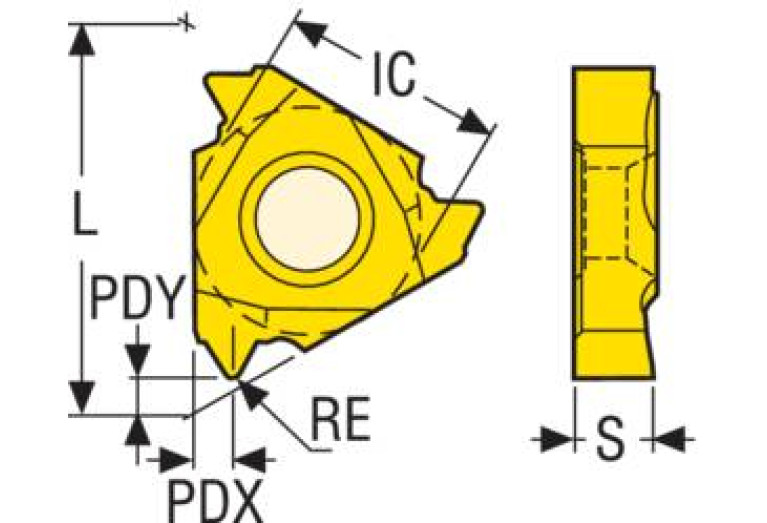

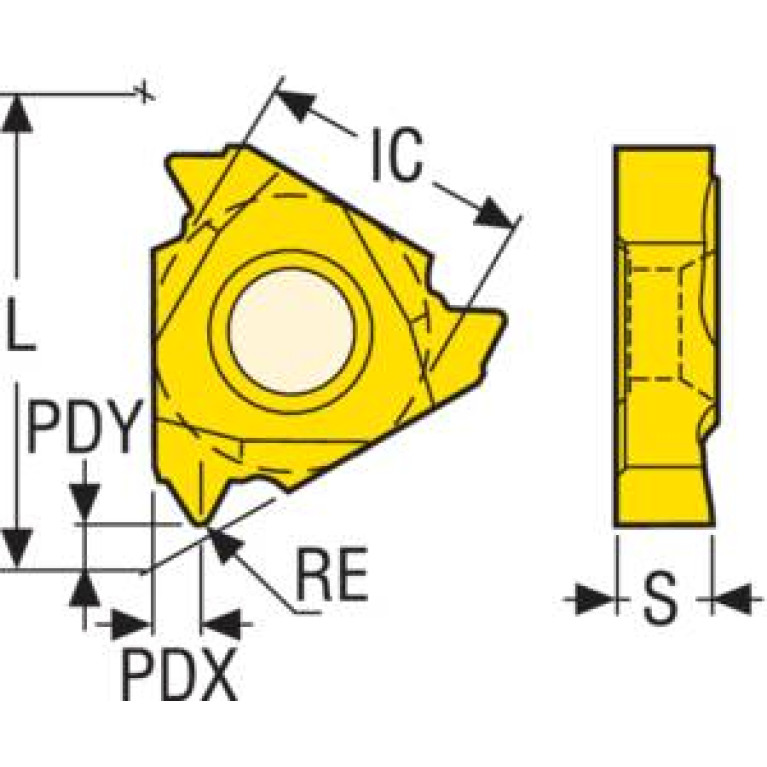

IC Inscribed circle diameter

9.525 mm

ID Technical product number

02964983

IH Insert hand

L - Left

Interface codes

J6 / J61

ISO

SO$$NL16L

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03 ISO

SO$$NL16L

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-SO 16NL

Name Identifying order number

16NL1.5ISO TM4000

NOF Flute count

NT Tooth count

PDX Profile distance X

0.8 mm

PDY Profile distance Y

0.8 mm

PFS Profile form

PNA Profile included angle

60 Degree

REL Corner radius left hand

0.12 mm

S Insert thickness

3.47 mm

TPN Thread pitch minimum

1.5 mm

TPX Thread pitch maximum

1.5 mm

TTP Thread type

I - Internal thread

Working process

No working processes available
