16ER20W TM4000
16ER20W TM4000
Артикул:
02964911
В наличии
Характеристики
COMPC Company code
SO - SECO Tools
Delivery state valid from
3/14/2020
DIN
SO-SO 16ER
FamilyProducts
16ER20W TM4000
GRDMFG Grade manufacturers designation
TM4000
IC Inscribed circle diameter
9.525 mm
ID Technical product number
02964911
IH Insert hand
R - Right
Interface codes
J6 / J61
ISO
SO$$ER16R
ISYC Subclass

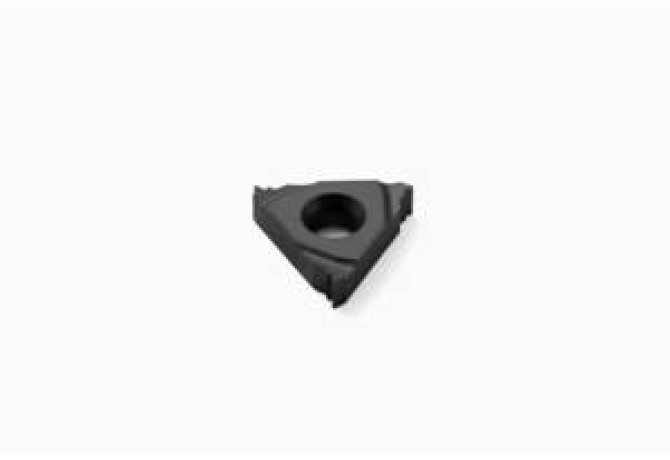

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth
LOC-03 ISO
SO$$ER16R
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SO-SO 16ER
Name Identifying order number
16ER20W TM4000
NOF Flute count
3
NT Tooth count
1

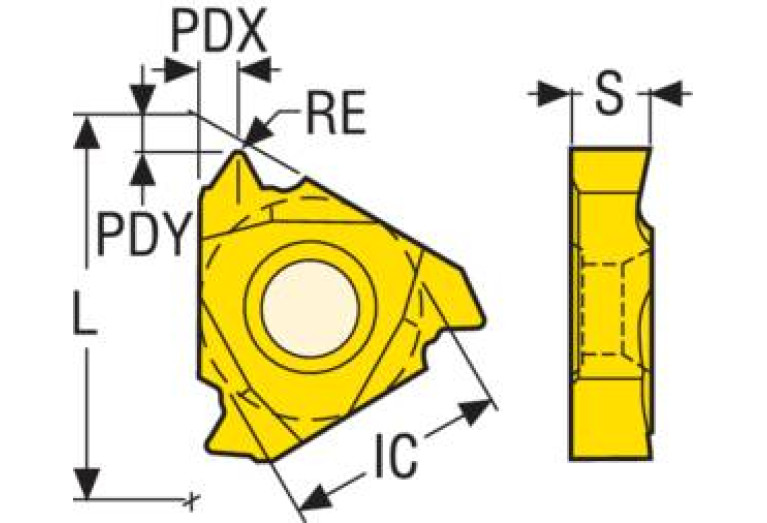

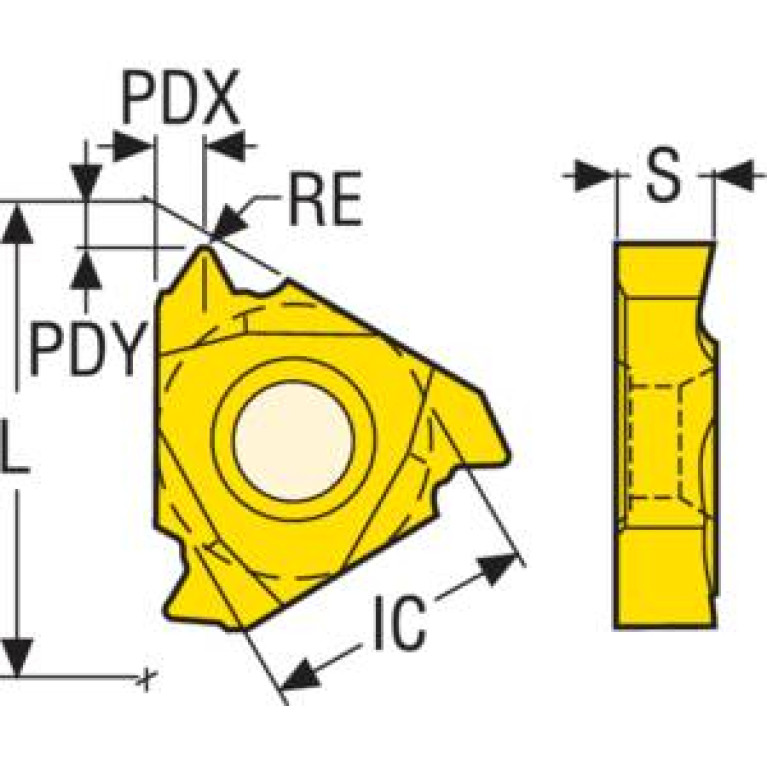

PDX Profile distance X
0.8 mm
PDY Profile distance Y
0.8 mm
PFS Profile form
8
PNA Profile included angle
55 Degree
RER Corner radius right hand
0.14 mm
S Insert thickness
3.47 mm
TPIN Threads per inch minimum
20
TPIX Threads per inch maximum
20
TTP Thread type
E
Working process
No working processes available
