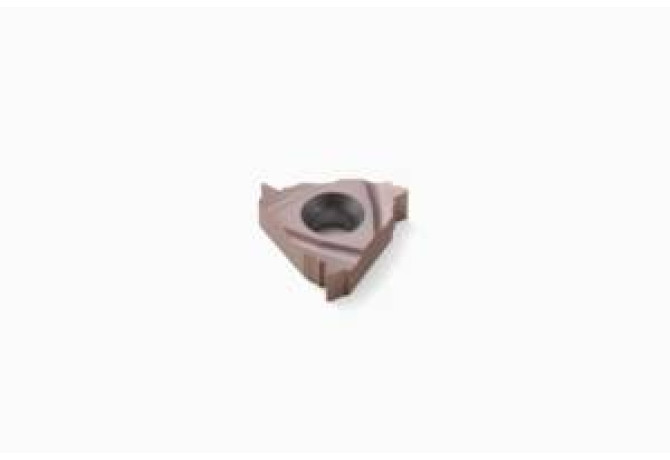

16ER14W TP1030

Артикул: 02877788

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

Delivery state valid from

3/14/2020

DIN

SO-SO 16ER

FamilyProducts

16ER14W TP1030

GRDMFG Grade manufacturers designation

TP1030

IC Inscribed circle diameter

9.525 mm

ID Technical product number

02877788

IH Insert hand

R - Right

Interface codes

J6 / J61

ISO

SO$$ER16R

ISYC Subclass

202-08 - Lay-down threading insert, triangle shape, three cutting edges, one tooth

LOC-03 ISO

SO$$ER16R

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SO-SO 16ER

Name Identifying order number

16ER14W TP1030

NOF Flute count

NT Tooth count

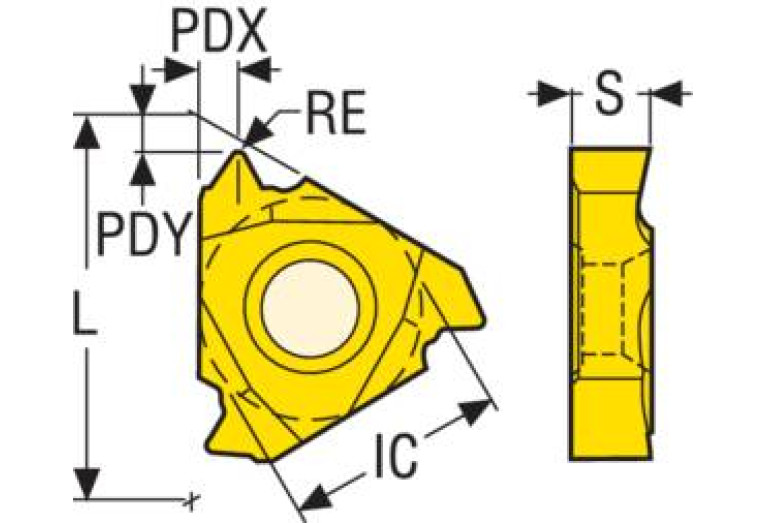

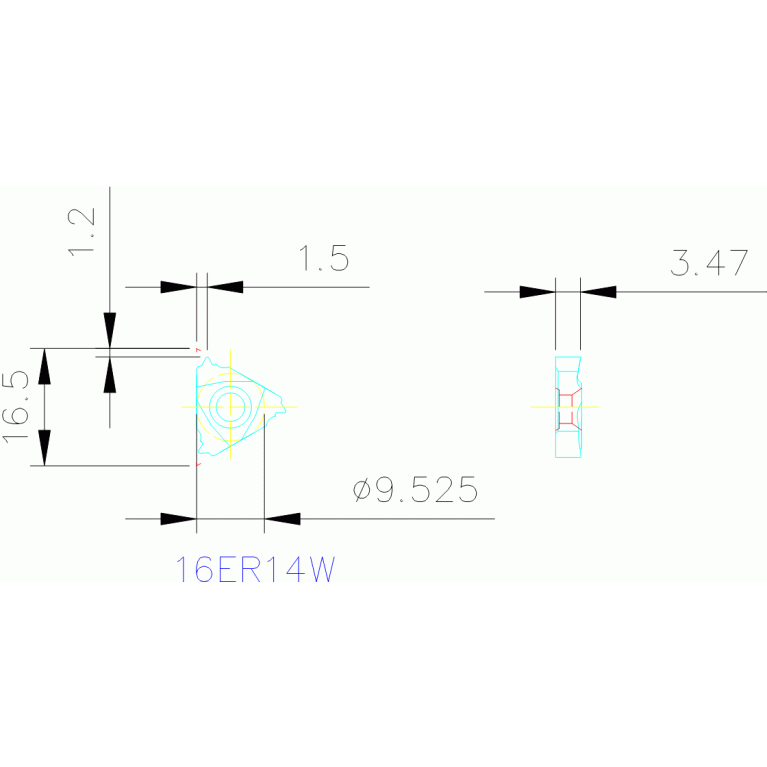

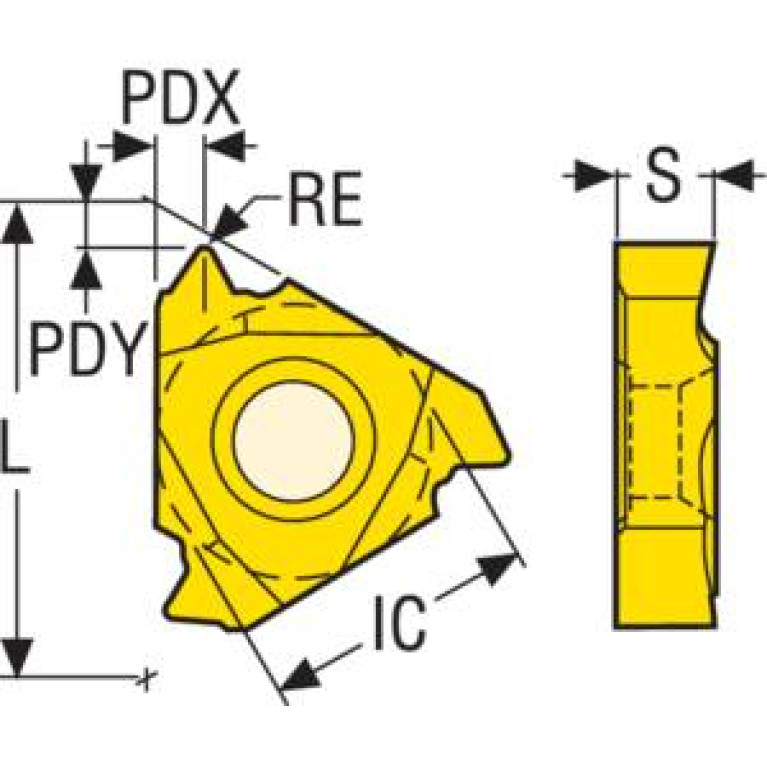

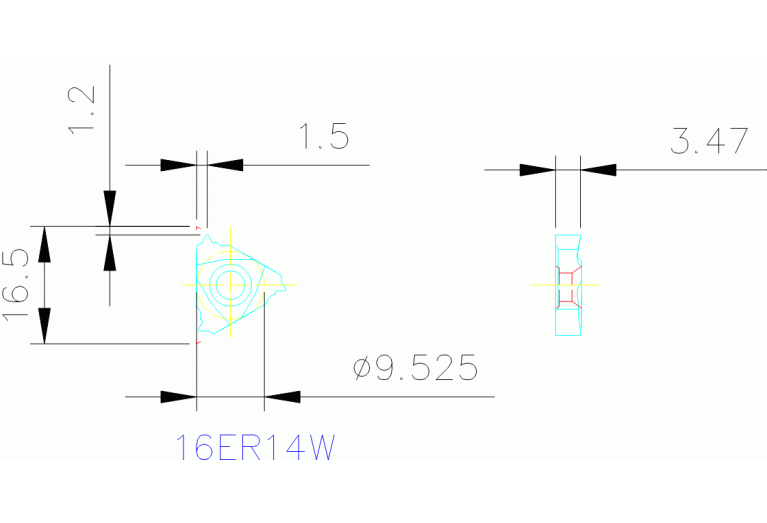

PDX Profile distance X

1.5 mm

PDY Profile distance Y

1.2 mm

PFS Profile form

PNA Profile included angle

55 Degree

RER Corner radius right hand

0.24 mm

S Insert thickness

3.47 mm

TPIN Threads per inch minimum

TPIX Threads per inch maximum

TTP Thread type

Working process

No working processes available

WT Weight of item

0.1 kg
