150.10A-15-3RJETI

Артикул: 02885689

В наличии

В корзину

Описание

Характеристики

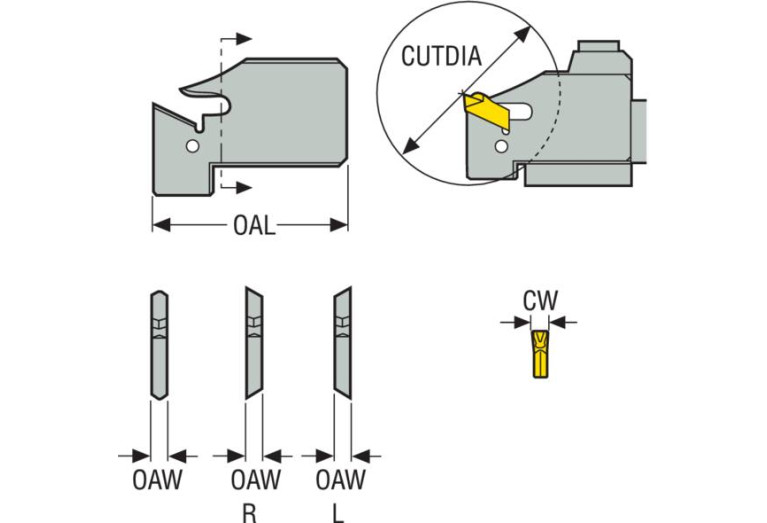

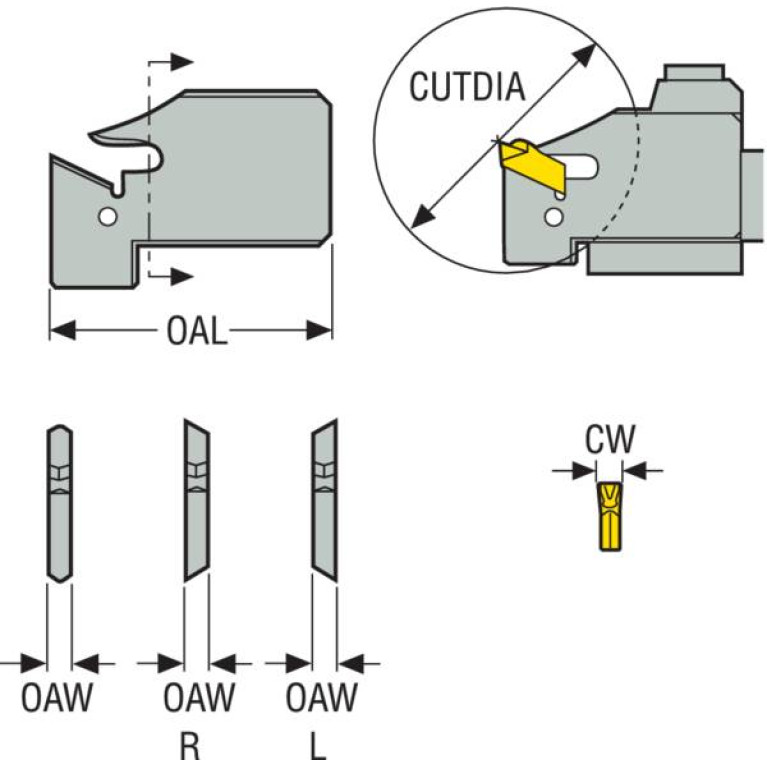

CDX Cutting depth maximum

19 mm

CODX Cut off diameter maximum

38 mm

COMPC Company code

SO - SECO Tools

CW Cutting width

3 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

SO-150 10 00

FamilyProducts

150.10A-15-3RJETI

HAND Cutting direction

R - Right

HF Functional height

15.5 mm

ID Technical product number

02885689

Interface codes

Interface codes CSW1

J41 /

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

90 Degree

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03-Connection-codes

J6 / J61 - connection code machine end

Name Identifying order number

150.10A-15-3RJETI

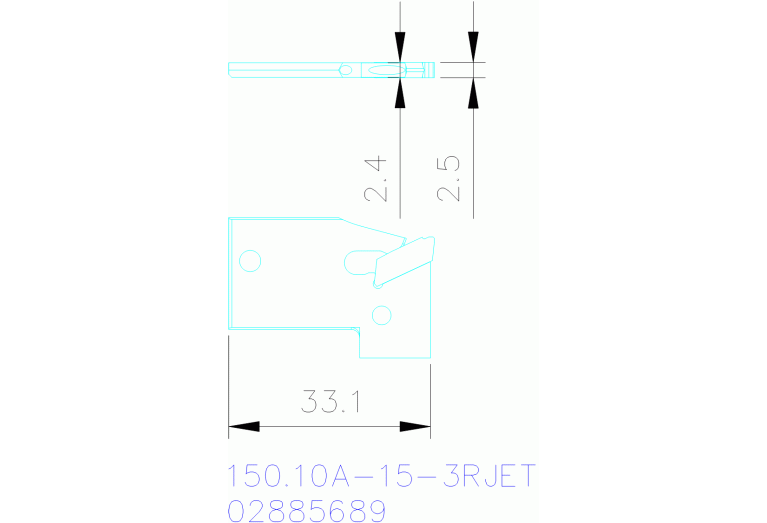

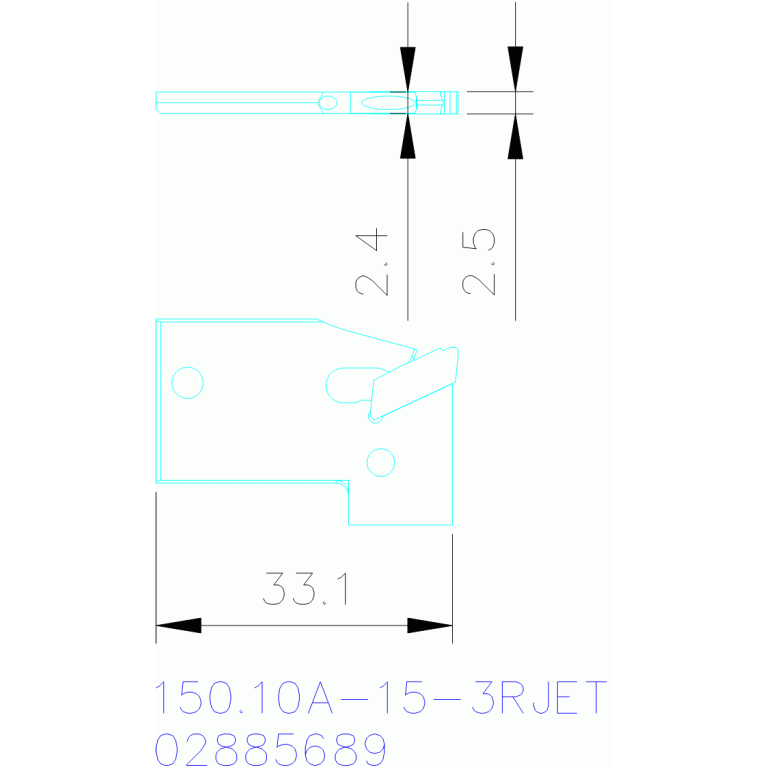

OAL Overall length

33.1 mm

OAW Overall width

2.4 mm

Working process

No working processes available

WT Weight of item

0.01 kg
