Главная Каталог продукции Toolunited 10 05F58322012

05F58322012

Артикул: 00096434

В наличии

В корзину

Описание

Характеристики

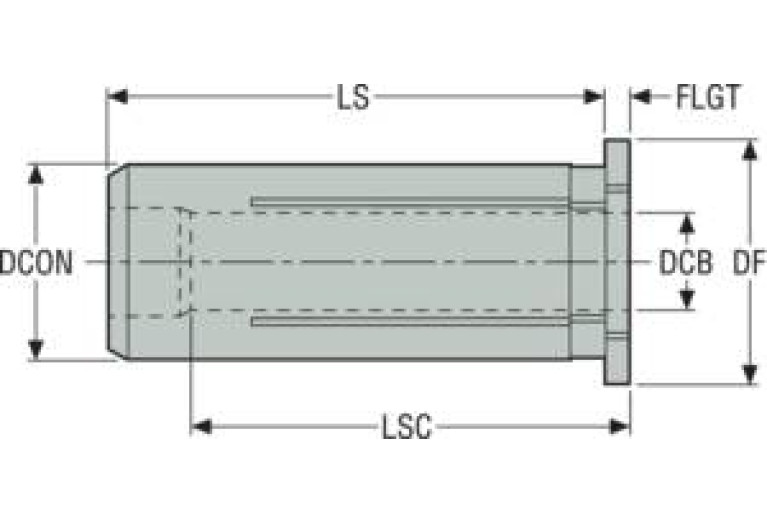

BD Body diameter

25 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0120

DCB Connection bore diameter

12 mm

Delivery state valid from

3/14/2020

FamilyProducts

05F58322012

ID Technical product number

00096434

Interface codes

ISYC Subclass

405-08 - Cylindrical clamping sleeve

LCOL Collet length

50 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0120

LOC-01 ISO

SZC05G2000$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01200505

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LSC Clamping length

45 mm

LSCX Clamping length maximum

45 mm

Name Identifying order number

05F58322012

OAL Overall length

54 mm

WT Weight of item

0.078 kg
