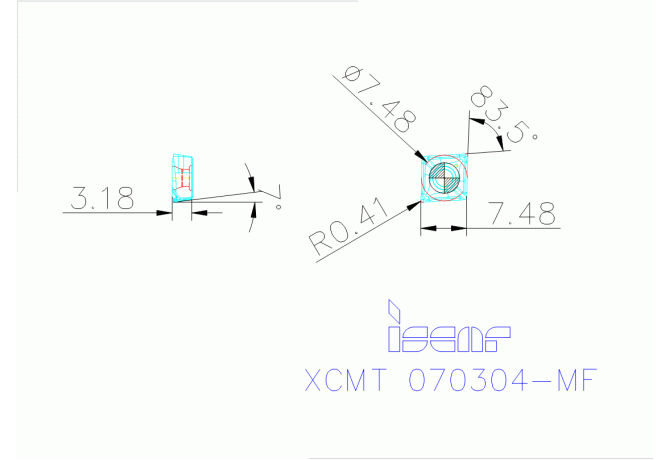

XCMT 070304-MF IC908

Артикул: 5506626

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN

COMPC Company code

IS - Iscar

DIN

IS-30974026160294

EPSR Insert included angle

83.5 Degree

FamilyProducts

Inserts for DR-MF Multifunction Tools with Two Cutting Edges for Hard Materials and Interrupted Cut

GRDMFG Grade manufacturers designation

IC908

IC Inscribed circle diameter

7.5 mm

ID Technical product number

5506626

Interface codes

J6 / J441

ISISO ISO property

ISO

IS$$30974026160294

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

7.5 mm

LOC-03 ISO

IS$$30974026160294

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IS-30974026160294

Name Identifying order number

XCMT 070304-MF IC908

RE Corner radius

0.4 mm

S Insert thickness

3.18 mm

Working process

No working processes available
