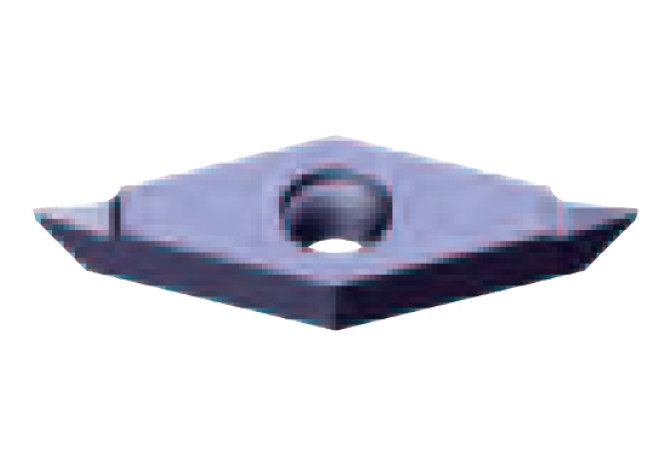

VPET1103018MFN-JSP SH730

Артикул: 6856758

В наличии

В корзину

Описание

Характеристики

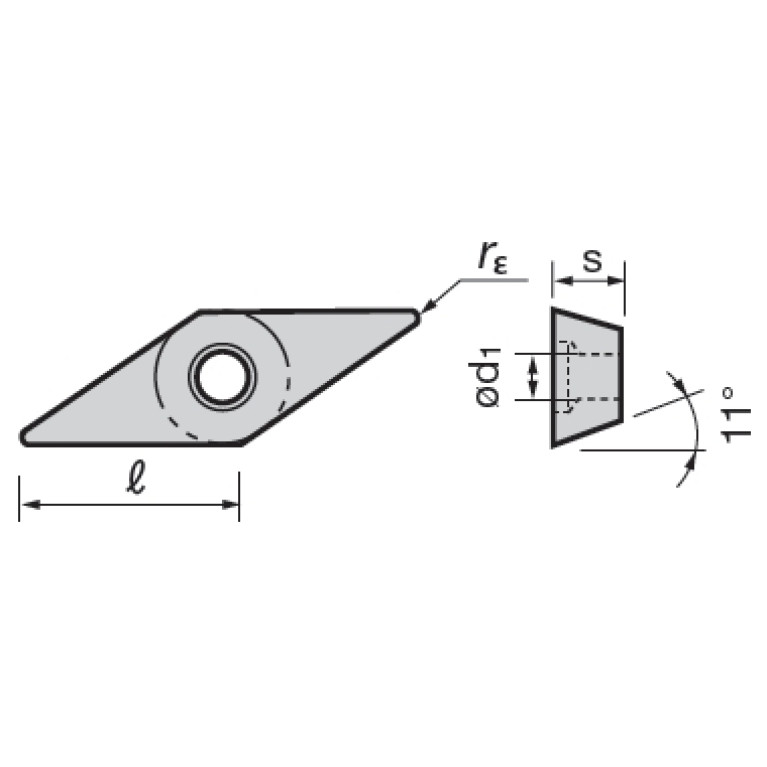

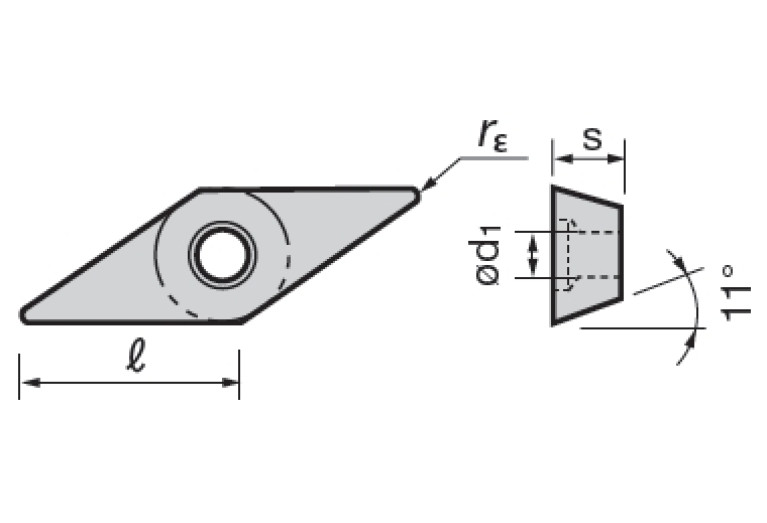

AN Clearance angle major

11 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

JSP

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

7/27/2012

DIN

VP1103 3N

EPSR Insert included angle

35 Degree

FamilyProducts

insert for finishing VPET-JSP

GAN Insert rake angle

10 Degree

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRD3RD Standard designation of the grade 3rd application

HC-S10

GRDMFG Grade manufacturers designation

SH730

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

6.35 mm

ID Technical product number

6856758

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VP1103 3N

Materials

P,M,S

Name Identifying order number

VPET1103018MFN-JSP SH730

RE Corner radius

0.18 mm

S Insert thickness

3.18 mm

STDDES Standard designation

VPET1103018MFN

STDDESAnsi Standard designation ANSI

VPET1103018MFN

TCINS Tolerance class insert

Working process

F - Milling
