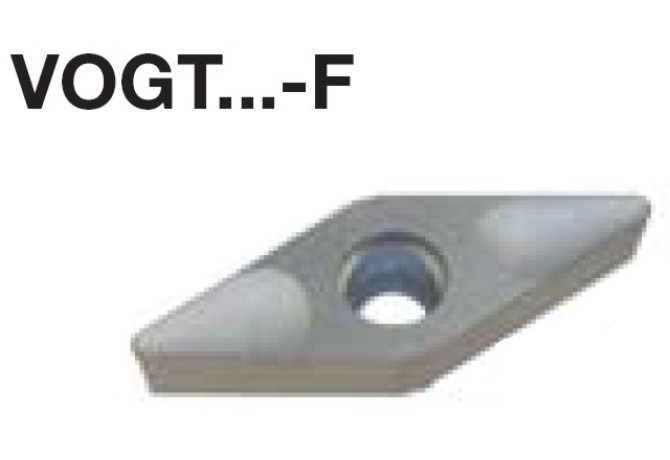

VOGT180610F LW610

Артикул: VOGT180610F LW610

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.2 mm

Delivery state valid from

2/1/2009

DIN

VO1806 3N

EPSR Insert included angle

35 Degree

FamilyProducts

35° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HW-K10

GRDMFG Grade manufacturers designation

LW610

GRDPRIO Standard designation of the grade main application

HW-N15

IC Inscribed circle diameter

10.7 mm

ID Technical product number

VOGT180610F LW610

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

18 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VO1806 3N

Materials

Name Identifying order number

VOGT180610F LW610

RE Corner radius

1 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

VOGT180610F

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning
