VNMX 130404 MK TT9080

Артикул: 6141246

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

VN1304047N

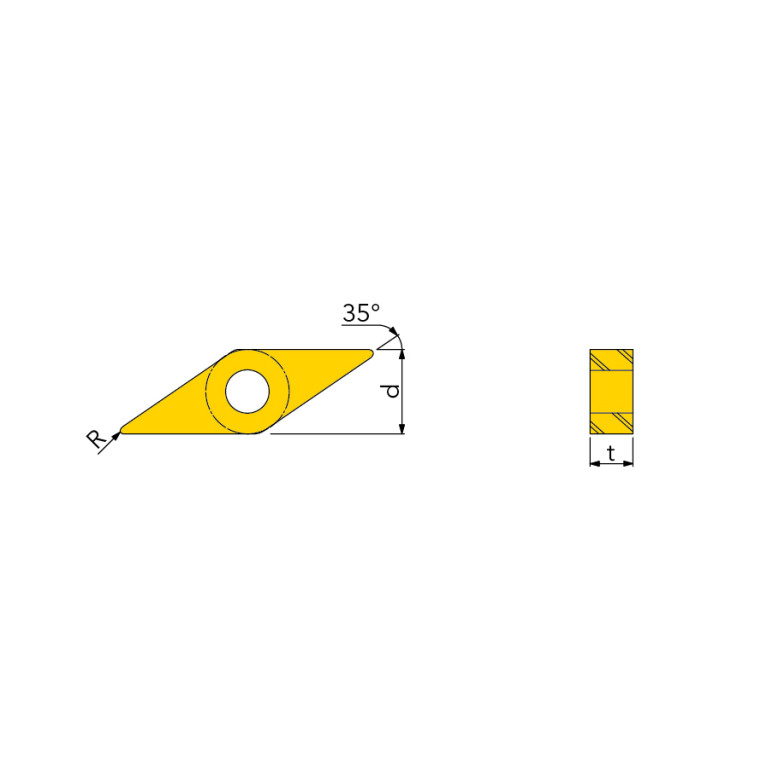

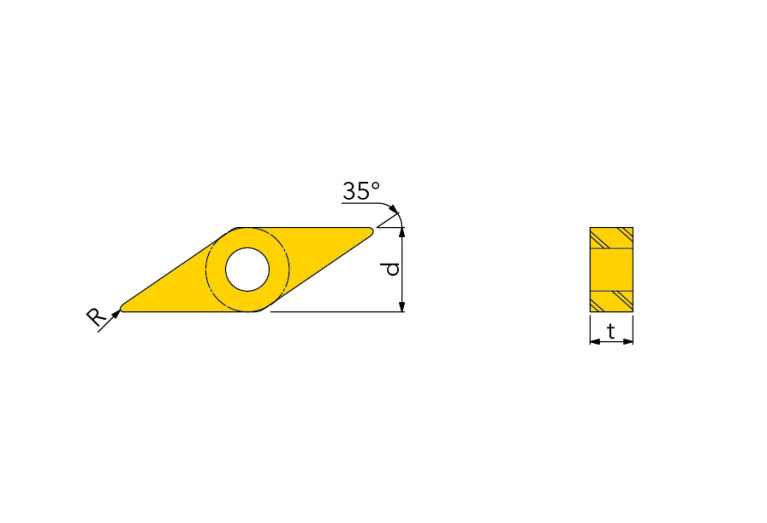

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Negative 35° rhombic inserts for stainless steel and heat resistant material

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S40

GRDMFG Grade manufacturers designation

TT9080

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

7.94 mm

ID Technical product number

6141246

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

1.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN1304047N

Name Identifying order number

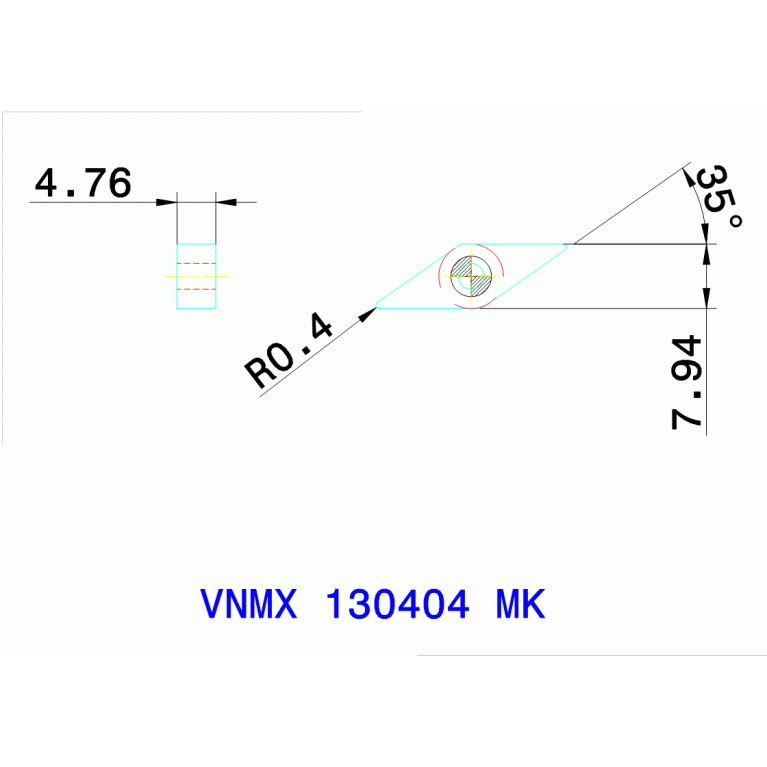

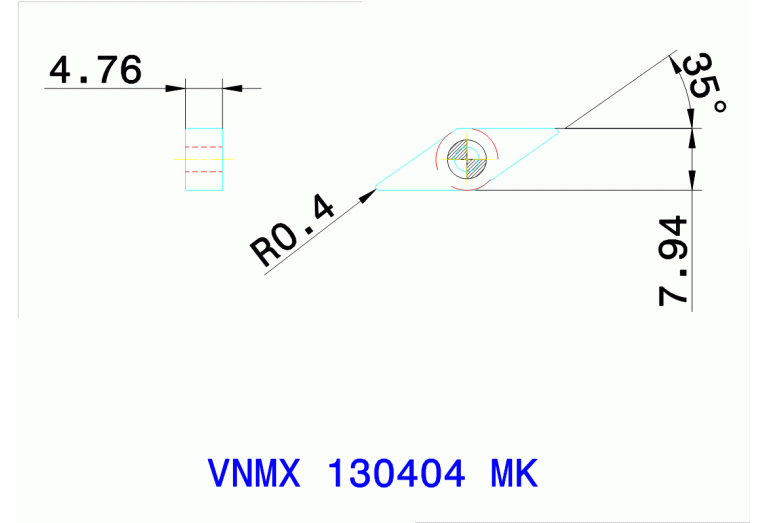

VNMX 130404 MK TT9080

RE Corner radius

0.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VNMX130404

STDDESAnsi Standard designation ANSI

VNMX2.531

TCINS Tolerance class insert

Working process

No working processes available
