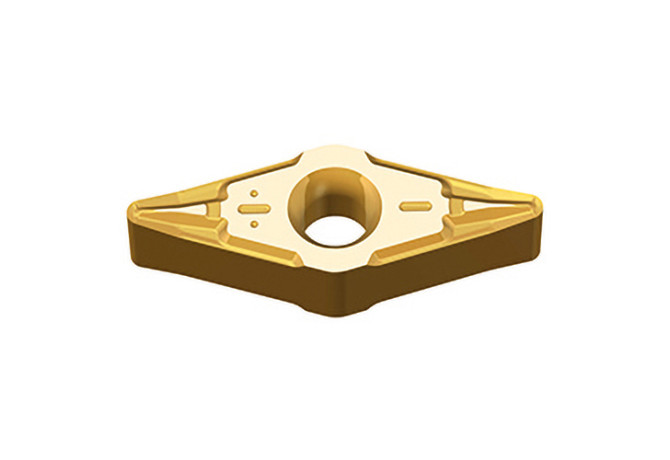

VNMX 130402 FS CT3000

Артикул: 6140235

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

VN1304027N

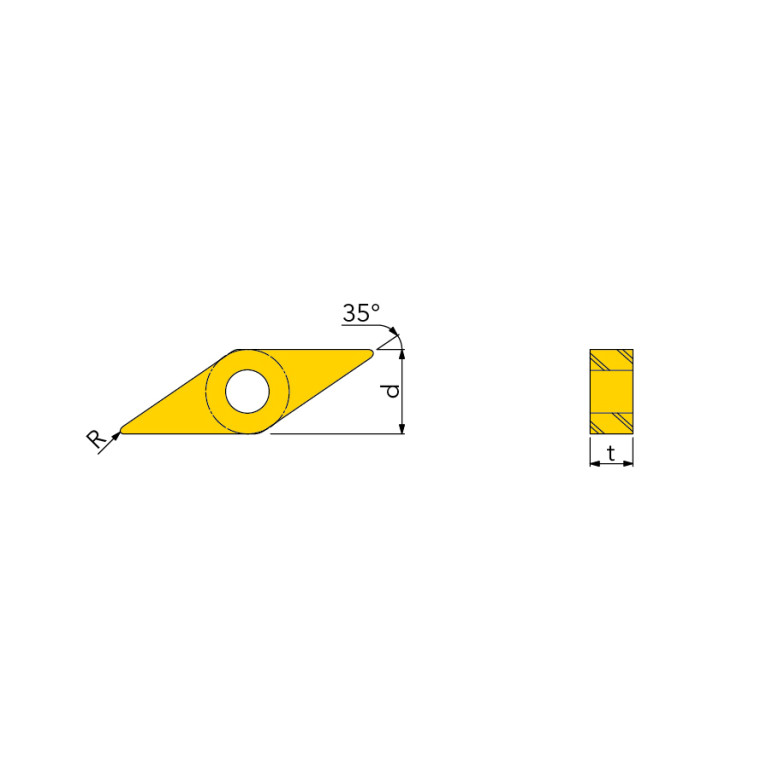

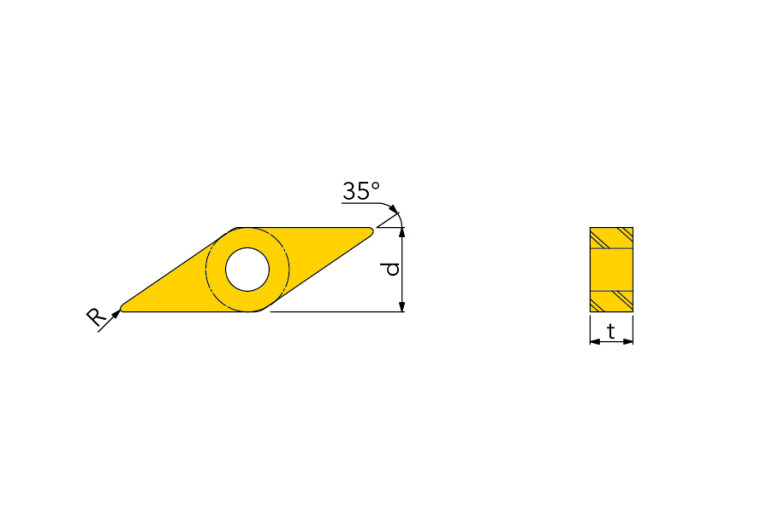

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Negative 35° rhombic inserts for super finishing

GRD2ND Standard designation of the grade 2nd application

M10-M20

GRD3RD Standard designation of the grade 3rd application

K10-K20

GRDMFG Grade manufacturers designation

CT3000

GRDPRIO Standard designation of the grade main application

P10-P20

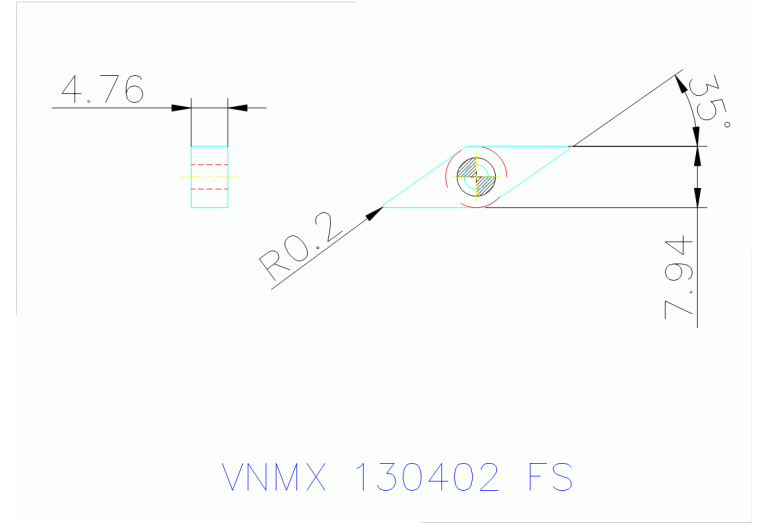

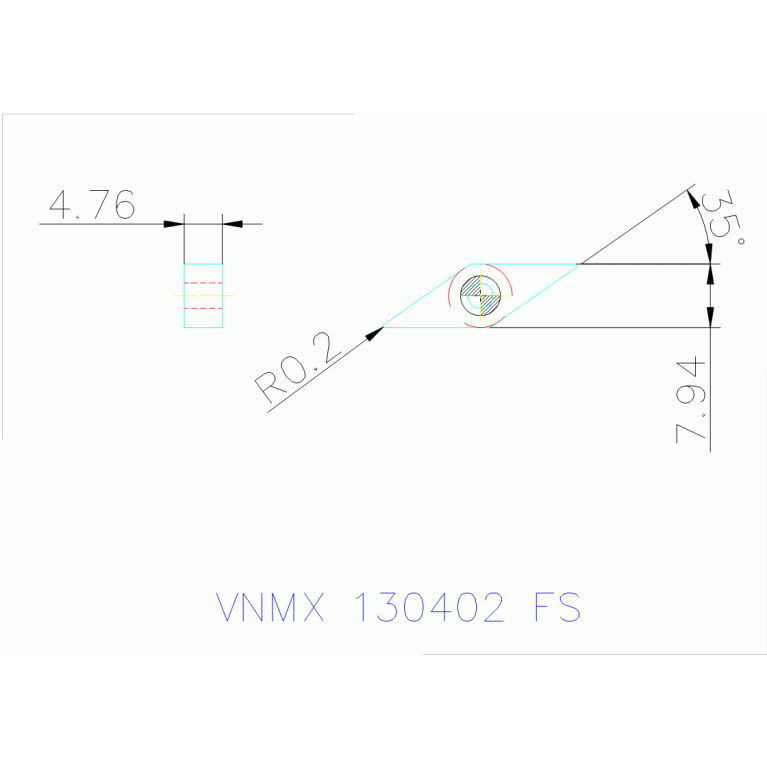

IC Inscribed circle diameter

7.94 mm

ID Technical product number

6140235

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

0.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN1304027N

Name Identifying order number

VNMX 130402 FS CT3000

RE Corner radius

0.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VNMX130402

TCINS Tolerance class insert

Working process

No working processes available
