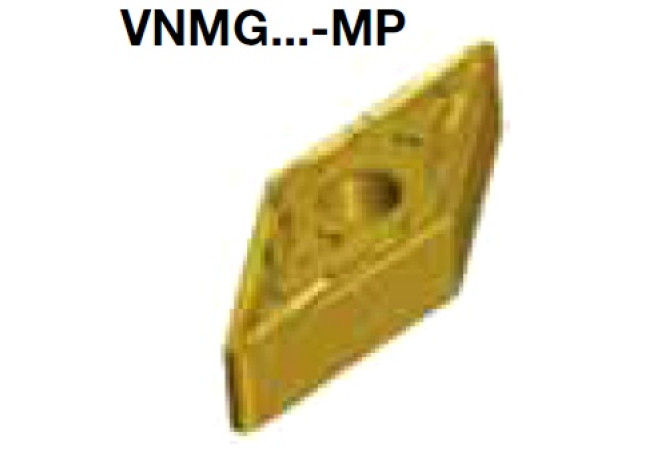

VNMG160412-MP LC225K

Артикул: VNMG160412-MP LC225K

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

4/25/2012

DIN

VN1604 2N

EPSR Insert included angle

35 Degree

FamilyProducts

35° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRDMFG Grade manufacturers designation

LC225K

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

9.52 mm

ID Technical product number

VNMG160412-MP LC225K

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN1604 2N

Materials

Name Identifying order number

VNMG160412-MP LC225K

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VNMG160412

STDDESAnsi Standard designation ANSI

VNMG333

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning
