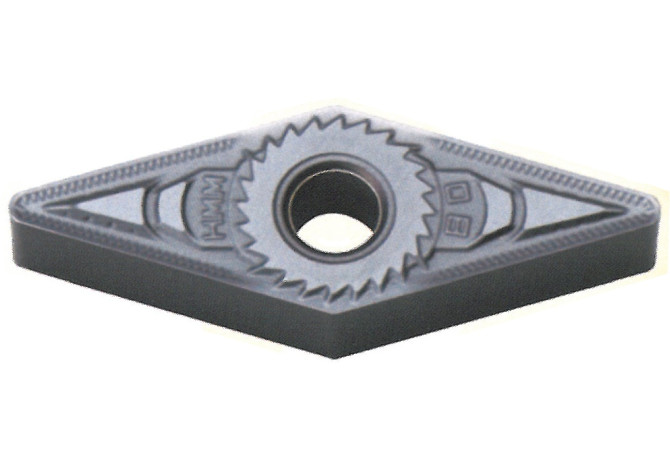

VNMG160412-HMM AH905

Артикул: VNMG160412-HMM AH905

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BN Face land width

0.25 mm

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

HMM

CECC Cutting edge condition code

T - Chamfered

COATN Coating / Покрытие

(Ti,AI)N

COMPC Company code

TT - Tungaloy

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

3.81 mm

Delivery state valid from

8/1/2012

DIN

VN1604 2N

EPSR Insert included angle

35 Degree

FamilyProducts

insert for turning

GAN Insert rake angle

15 Degree

GRD2ND Standard designation of the grade 2nd application

HC-S15

GRDMFG Grade manufacturers designation

AH905

GRDPRIO Standard designation of the grade main application

HC-S05

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN1604 2N

Materials

Name Identifying order number

VNMG160412-HMM AH905

NameAnsi Identifying order number inch alternative

VNMG 333 HMM AH905

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VNMG160412

STDDESAnsi Standard designation ANSI

VNMG333

TCINS Tolerance class insert

Working process

DDA - External turning
