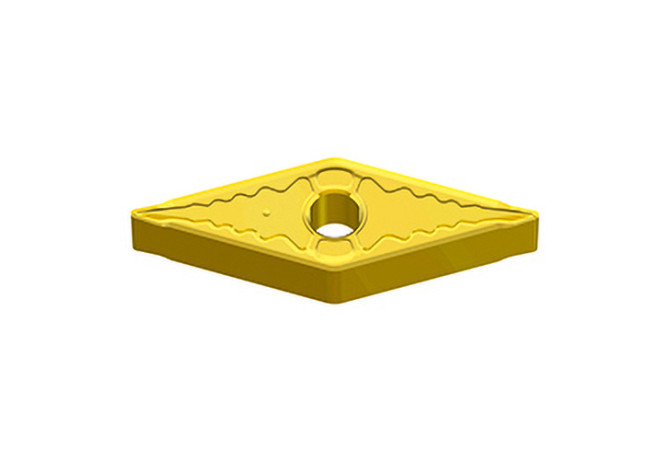

VNMG 160408 EA TT9235

Артикул: 5521962

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

VN1604082N

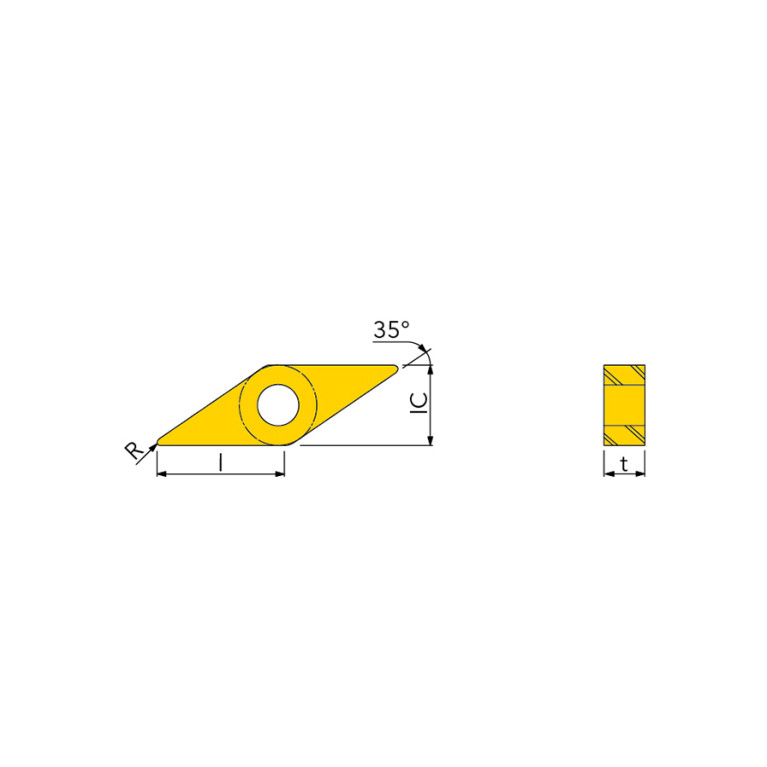

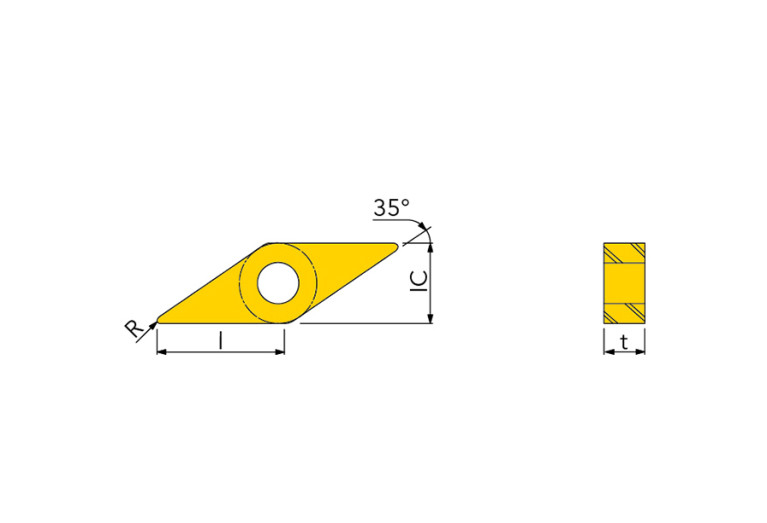

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Common type chipbreaker, negative 35° rhombic inserts for finishing / exotic material

GRD2ND Standard designation of the grade 2nd application

M25-M40

GRD3RD Standard designation of the grade 3rd application

S25-S40

GRDMFG Grade manufacturers designation

TT9235

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5521962

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

14.6 mm

LE Cutting edge effective length

0.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN1604082N

Name Identifying order number

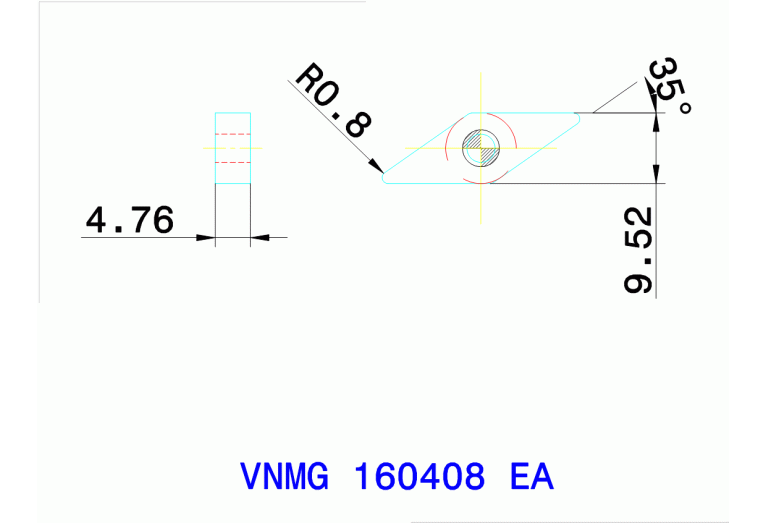

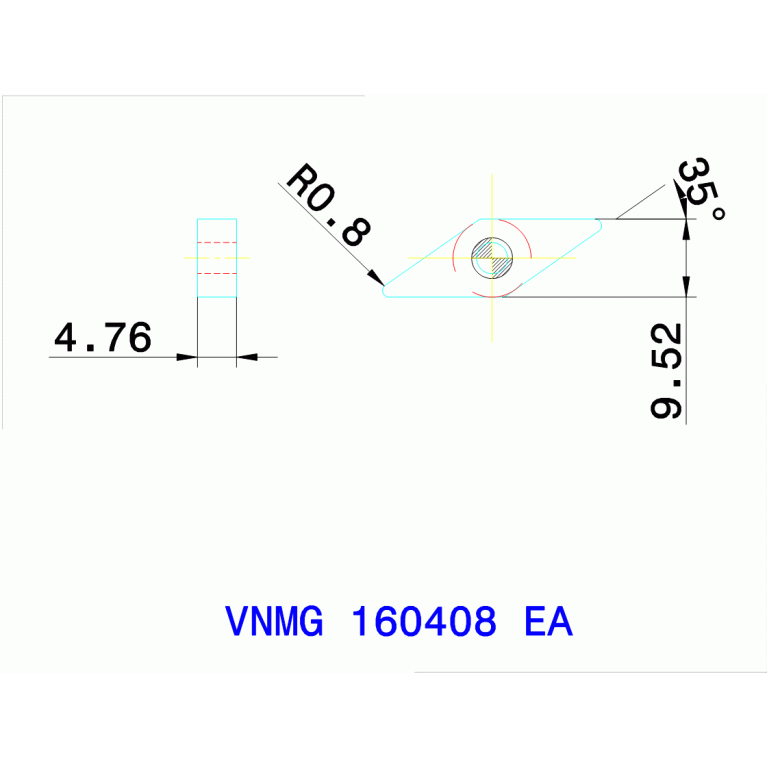

VNMG 160408 EA TT9235

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VNMG160408

STDDESAnsi Standard designation ANSI

VNMG332

TCINS Tolerance class insert

Working process

No working processes available
