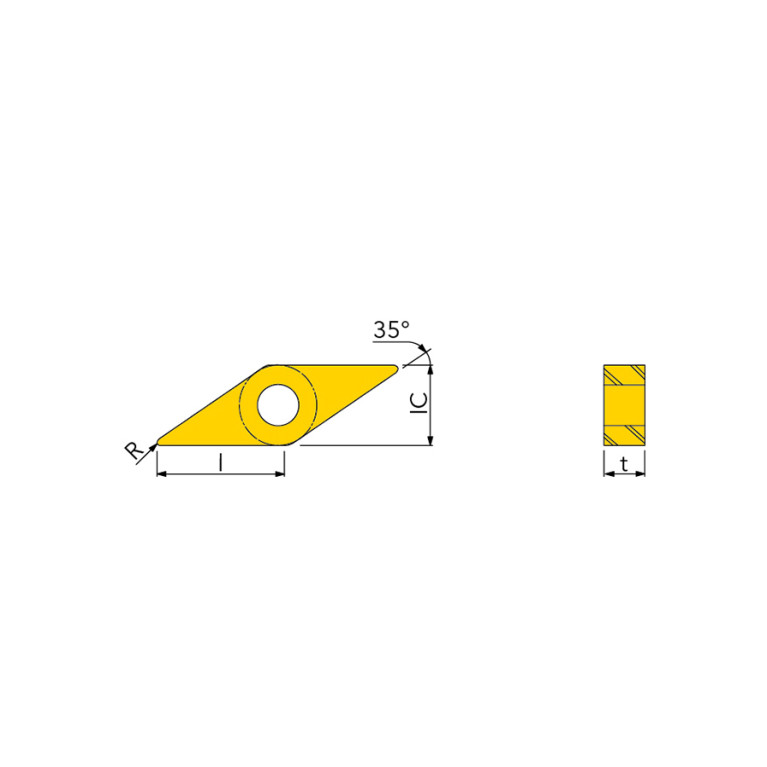

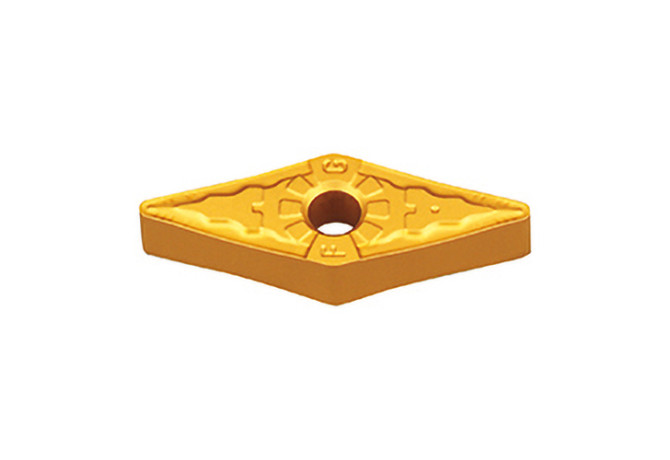

VNMG 130408 FG TT5080

Артикул: 5523119

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAlN+TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

VN1304082N

EPSR Insert included angle

35 Degree

FamilyProducts

ISO Negative 35° Rhombic Inserts VNMG FG Chipbreaker

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT5080

IC Inscribed circle diameter

7.94 mm

ID Technical product number

5523119

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

11.8 mm

LE Cutting edge effective length

0.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN1304082N

Name Identifying order number

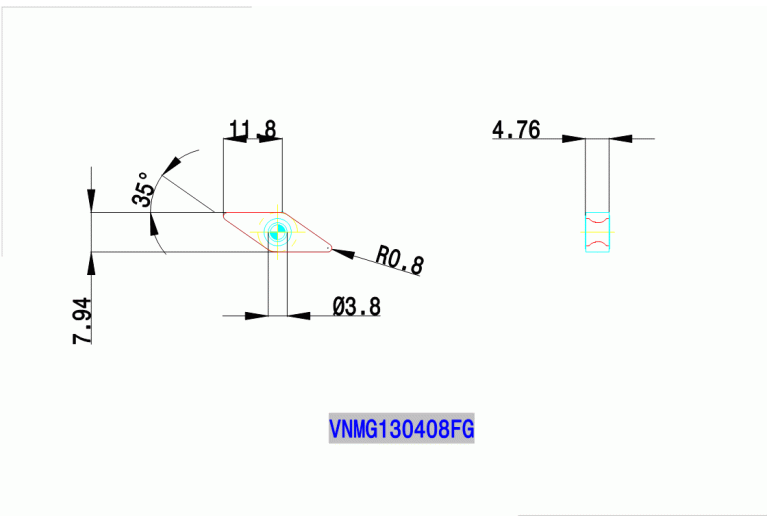

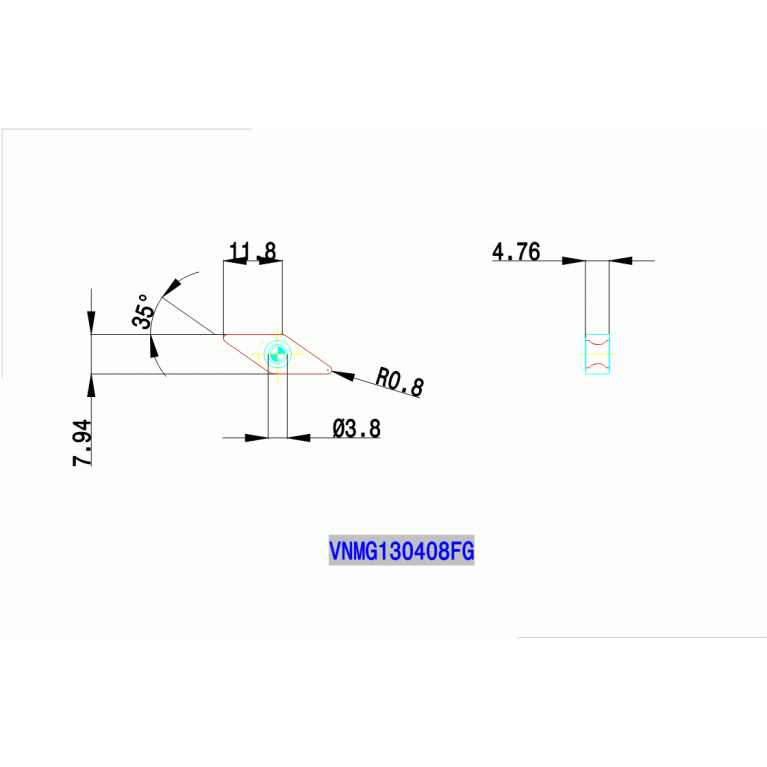

VNMG 130408 FG TT5080

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VNMG130408

STDDESAnsi Standard designation ANSI

VNMG2.532

TCINS Tolerance class insert

Working process

No working processes available
