VNMG 12T304-NF IC8250

Артикул: 5508144

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiN-TiCN

COMPC Company code

IS - Iscar

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2012

DIN

VN12T3042N

EPSR Insert included angle

35 Degree

FamilyProducts

VNMG 12T304-NF IC8250

GAN Insert rake angle

4 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P01

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

IC8250

GRDPRIO Standard designation of the grade main application

HC-P35

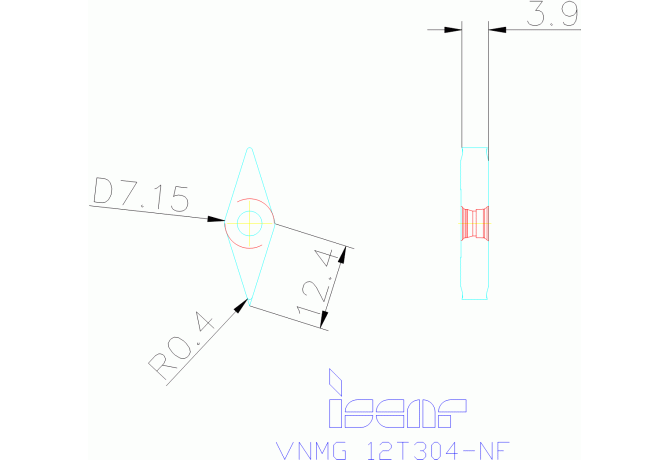

IC Inscribed circle diameter

7.15 mm

ID Technical product number

5508144

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

12.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN12T3042N

Materials

Name Identifying order number

VNMG 12T304-NF IC8250

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.9 mm

STDDES Standard designation

VNMG12T304

TCINS Tolerance class insert

Working process

No working processes available
