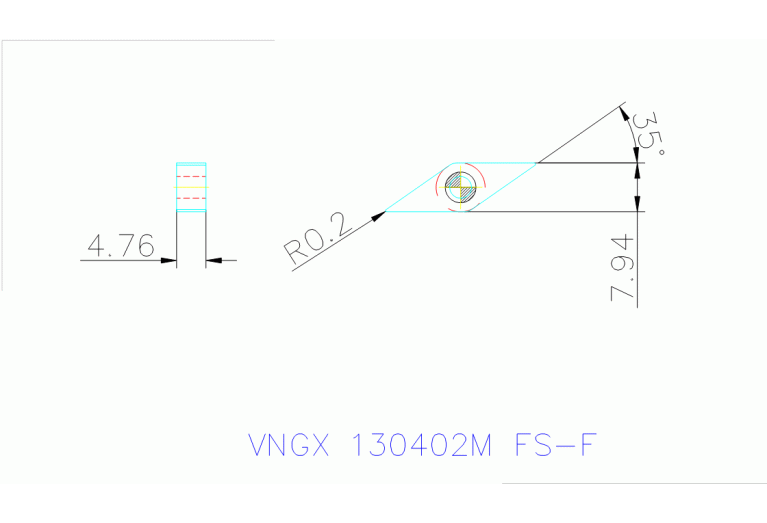

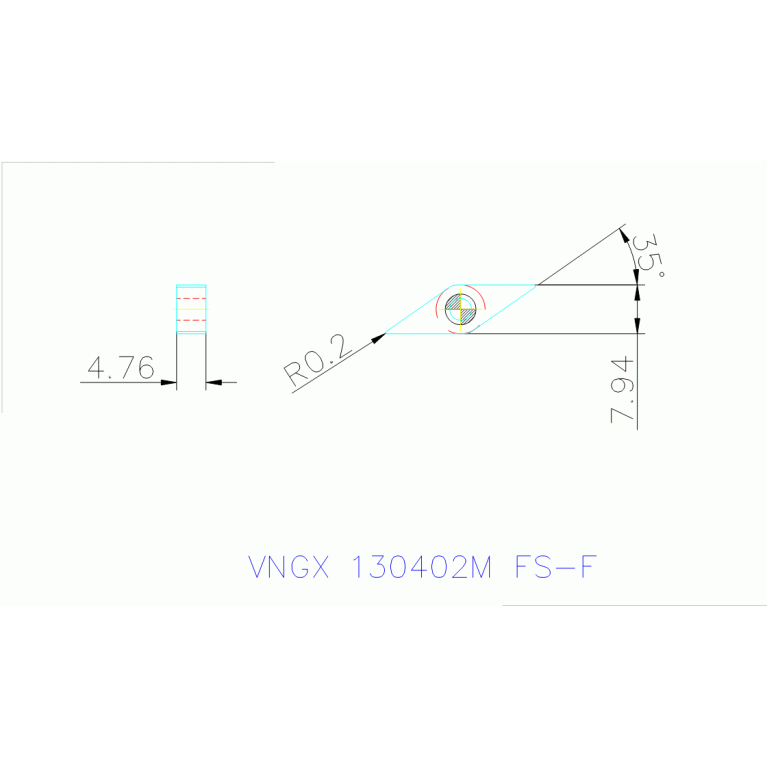

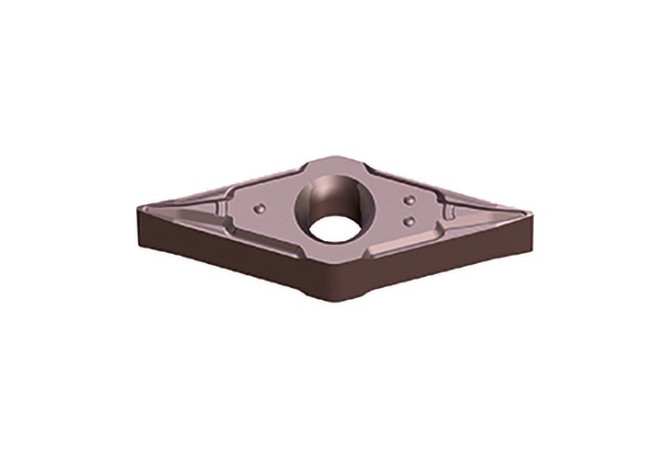

VNGX 130402M FS-F TT4410

Артикул: 6324665

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Multi AlTiCrN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

VN1304027N

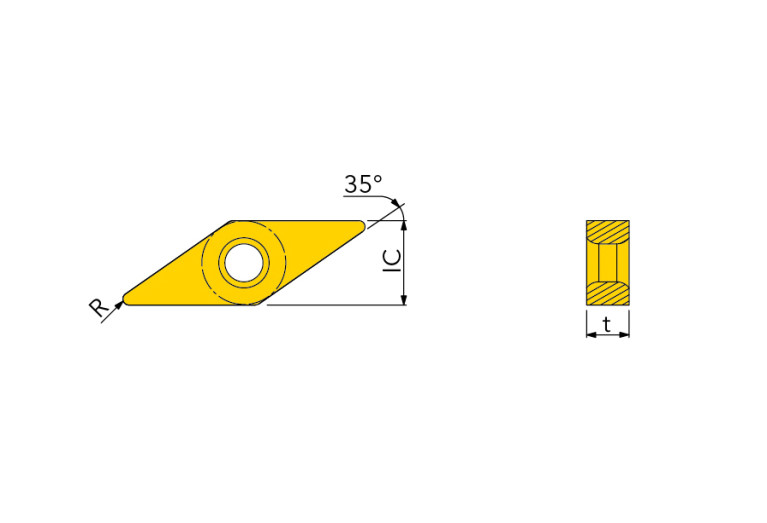

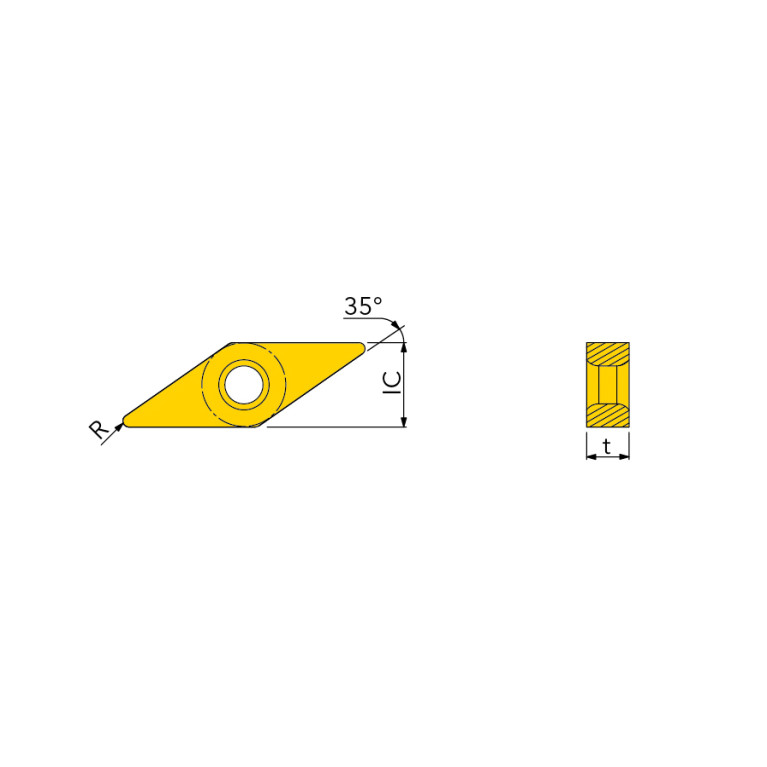

EPSR Insert included angle

35 Degree

FamilyProducts

insert, Negative 35° rhombic inserts for finishing

GRD2ND Standard designation of the grade 2nd application

M05-M25

GRD3RD Standard designation of the grade 3rd application

S05-S25

GRDMFG Grade manufacturers designation

TT4410

GRDPRIO Standard designation of the grade main application

P05-P25

IC Inscribed circle diameter

7.94 mm

ID Technical product number

6324665

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

LE Cutting edge effective length

0.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VN1304027N

Name Identifying order number

VNGX 130402M FS-F TT4410

RE Corner radius

0.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VNGX130402M

TCINS Tolerance class insert

Working process

No working processes available
