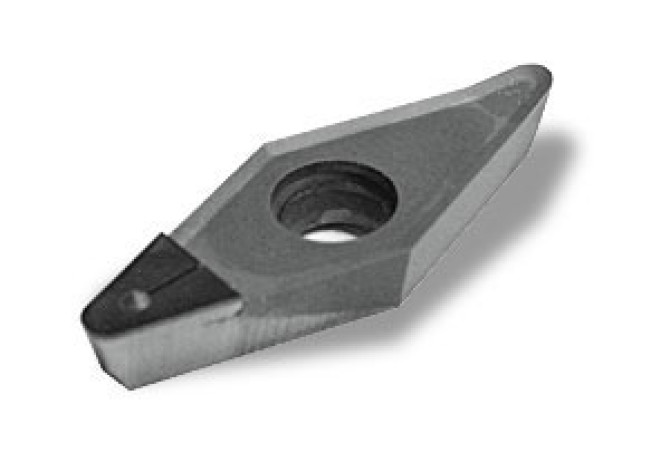

VCUW 220530FN-M4 CTD4110

Артикул: 11149113

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

VC2205303N

EPSR Insert included angle

35 Degree

FamilyProducts

PKD turning insert (formerly S010)

GRDMFG Grade manufacturers designation

CTD4110

GRDPRIO Standard designation of the grade main application

DP-K05

IC Inscribed circle diameter

12.7 mm

ID Technical product number

11149113

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

22.1 mm

LE Cutting edge effective length

6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC2205303N

Name Identifying order number

VCUW 220530FN-M4 CTD4110

RE Corner radius

3 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

VCUW220530FN

TCINS Tolerance class insert

U - Not treated

Working process

No working processes available
