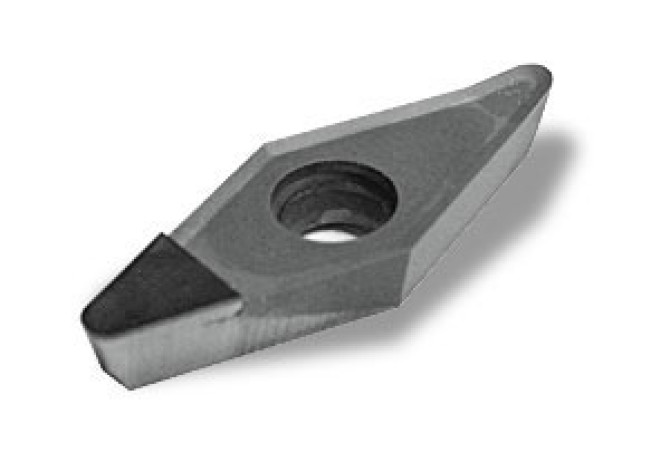

VCUW 160408FL CTD4125

Артикул: VCUW 160408FL CTD4125

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

VC1604083L

EPSR Insert included angle

35 Degree

FamilyProducts

PKD turning insert (formerly S025)

GRDMFG Grade manufacturers designation

CTD4125

GRDPRIO Standard designation of the grade main application

DP-K01

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604083L

Name Identifying order number

VCUW 160408FL CTD4125

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VCUW160408FL

STDDESAnsi Standard designation ANSI

VCUW332FL

TCINS Tolerance class insert

U - Not treated

Working process

No working processes available
