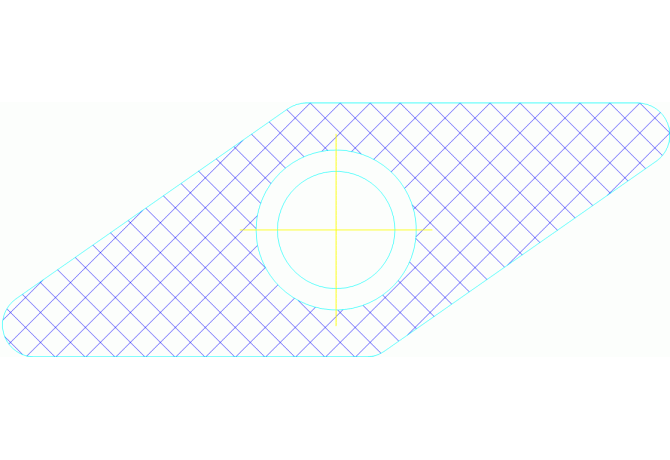

VCMW160412-RK6 WKK20S

VCMW160412-RK6 WKK20S VCMW160412-RK6 WKK20S

VCMW160412-RK6 WKK20S

Walter
Артикул: 6651603
В наличии
В корзину
Описание
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
RK6
CECC Cutting edge condition code
E - Rounded
COATN Coating / Покрытие
TiCN+Al2O3+(TiCN)
COMPC Company code
W - Walter
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
12/1/2023
DIN
VC1604123N
EPSR Insert included angle
35 Degree
FamilyProducts
Positive rhombic 35° VCMW
GRDMFG Grade manufacturers designation
WKK20S
IC Inscribed circle diameter
9.525 mm
ID Technical product number
6651603
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 / J441
ISISO ISO property
0
ISO
ISO$VC1604123NB$$12
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
16.606 mm
LOC-03 ISO
ISO$VC1604123NB$$12
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
VC1604123N
Name Identifying order number
VCMW160412-RK6 WKK20S
NameAnsi Identifying order number inch alternative
VCMW333-RK6 WKK20S
NOI Insert index count
2
RE Corner radius
1.2 mm
S Insert thickness
4.763 mm
S1 Insert thickness total
4.763 mm
STDDES Standard designation
VCMW160412
STDDESAnsi Standard designation ANSI
VCMW333
TCE Tipped cutting edge code
S
TCINS Tolerance class insert
M
Working process
No working processes available
WT Weight of item
0.011 kg
