VCMW160408 UE6020

Артикул: VCMW160408 UE6020

В наличии

В корзину

Описание

Характеристики

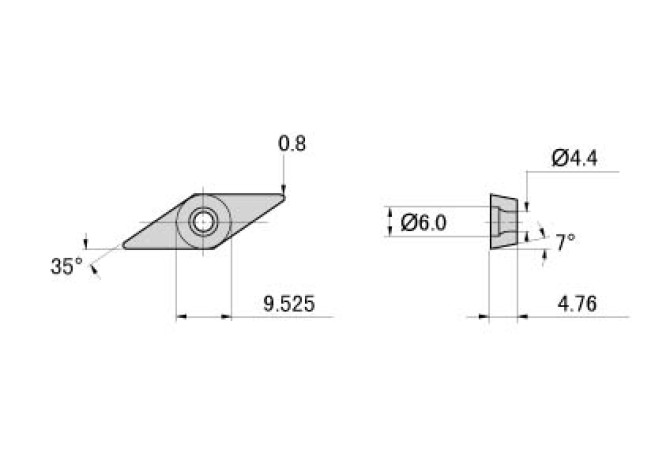

AN Clearance angle major

7 Degree

ANN Clearance angle minor

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN-Al2O3

COMPC Company code

MI - Mitsubishi Materials

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

4/1/2022

DIN

VC1604083N

EPSR Insert included angle

35 Degree

FamilyProducts

insert for turning VCMW

GAN Insert rake angle

0 Degree

GRD2ND Standard designation of the grade 2nd application

HC-P30

GRDMFG Grade manufacturers designation

UE6020

GRDPRIO Standard designation of the grade main application

HC-P10

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604083N

Materials

Name Identifying order number

VCMW160408 UE6020

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VCMW160408

STDDESAnsi Standard designation ANSI

VCMW332

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning
