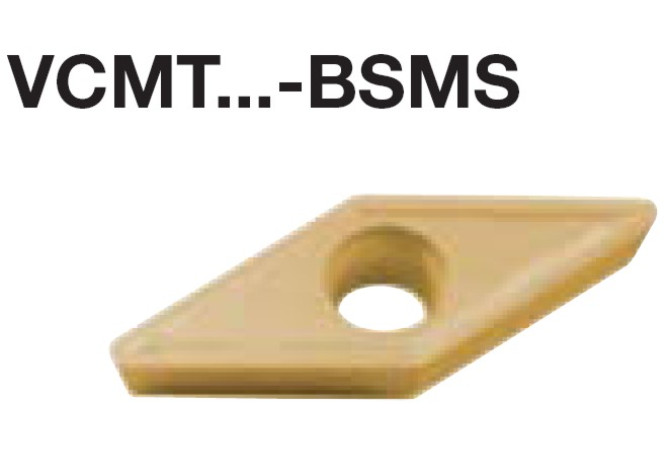

VCMT160412-BSMS LC435D

Артикул: 6407798

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BSMS

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

2/1/2009

DIN

VC1604 3N

EPSR Insert included angle

35 Degree

FamilyProducts

35° Rhombic insert

GRD2ND Standard designation of the grade 2nd application

HC-M35

GRDMFG Grade manufacturers designation

LC435D

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

9.52 mm

ID Technical product number

6407798

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-03 - Rhombic insert

L Cutting edge length

16.6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

VC1604 3N

Materials

Name Identifying order number

VCMT160412-BSMS LC435D

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

VCMT160412

STDDESAnsi Standard designation ANSI

VCMT333

TCINS Tolerance class insert

Working process

DDA - External turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning
