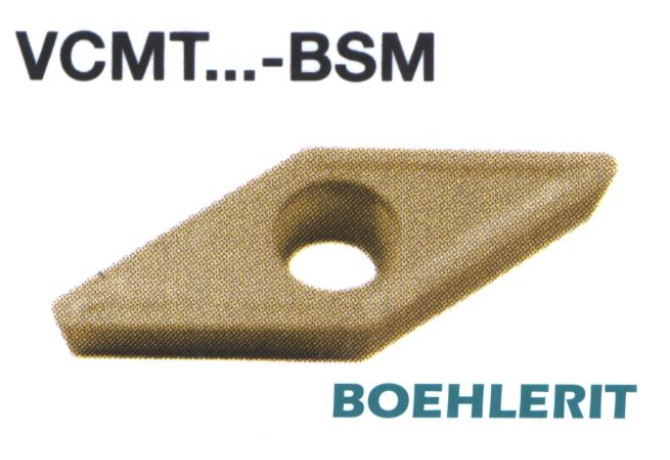

VCMT160412-BSM LC235C

VCMT160412-BSM LC235C

Boehlerit
Артикул: 6407797
В наличии
В корзину
Характеристики
AN Clearance angle major
7 Degree
CB Chip breaker face count
1 - With chip breaker one-side
CBMD Chip breaker manufacturers designation
BSM
COMPC Company code
BK - Boehlerit
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
2/1/2009
DIN
VC1604 3N
EPSR Insert included angle
35 Degree
FamilyProducts
35° Rhombic insert
GRDMFG Grade manufacturers designation
LC235C
IC Inscribed circle diameter
9.52 mm
ID Technical product number
6407797
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
N - Neutral
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-03 - Rhombic insert
L Cutting edge length
16.6 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
VC1604 3N
Materials
P,M
Name Identifying order number
VCMT160412-BSM LC235C
RE Corner radius
1.2 mm
S Insert thickness
4.76 mm
S1 Insert thickness total
4.76 mm
STDDES Standard designation
VCMT160412
STDDESAnsi Standard designation ANSI
VCMT333
TCINS Tolerance class insert
M
Working process
DDA - External turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning
